Getting Started with REST Developer Guide

This section describes how to use this developer guide and where to find further information.
Audience and Purpose
This guide provides information about how to sign up for a sandbox account and set up the
Visa Acceptance Solutions
 REST API.
Customer Support
For support information about any service, visit the Support Center:

Recent Revisions to This Document

26.02.01

Added new section that explains how to migrate from HTTP signature messaging to JWT messaging using a shared secret key pair. See Set Up a JSON Web Token Message Using Shared Secret Keys.
Added a warning note with the deprecation deadline for HTTP signature messaging. See Set Up an HTTP Signature Message [DEPRECATING].

26.01.01

This revision contains only editorial changes and no technical updates.

25.12.01

Added information about how to test a REST–API Response MLE key. For more information, see the Test Your REST—API Response MLE Key section in Test Your Setup.

25.11.01

Restructured these sections:
Added these sections for testing your security set up:

25.10.02

This revision contains only editorial changes and no technical updates.

25.10.01

This revision contains only editorial changes and no technical updates.

25.09.01

Added new set up information for enabling Message-Level Encryption (MLE) using JSON Web Tokens (JWTs). See the Overview of MLE Set Up and Java: Enbaling MLE Using JWTs sections in Enable Message-Level Encryption.

25.08.03

This revision contains only editorial changes and no technical updates.

25.08.02

This revision contains only editorial changes and no technical updates.

25.08.01

Added information about username and password requirements for creating a Sandbox account. See these topics:

25.06.01

This revision contains only editorial changes and no technical updates.

25.04.01

Updated the Header field from
Date
 to
v-c-date
 for HTTP Signature Method. See Elements of an HTTP Message section and Update Header Fields section in Construct Messages Using HTTP Signature Security.

25.03.01

This revision contains only editorial changes and no technical updates.

25.02.01

Updated the link in Step 6 and added steps about using the JSON Web Token. SeeConstruct Messages Using JSON Web Tokens, and added the Create the Authorization Header section.
Updated the description of the signature keyid. See the Update Header Fields section in Construct Messages Using HTTP Signature Security.

Introduction to REST

To get started using
Visa Acceptance Solutions
 APIs, you must first set up your system to be REST compliant.
Visa Acceptance Solutions
 uses REST for developing web services. REST enables communication between a client and server using HTTP protocols.
This guide explains how to set up secure communications between your client and server using one of these methods:
JSON Web Token Messaging
JSON Web Tokens (JWTs) are digitally signed JSON objects based on the open standard RFC 7519. These tokens provide a compact, self-contained method for securely transmitting information between parties. These tokens are signed with an RSA-encoded public and private key pair. The signature is calculated using the header and body, which enables the receiver to validate that the content has not been tampered with. Token-based messages are best for applications that use browser and mobile clients.
HTTP Signature Messaging
Each request is digitally signed, or the entire request is digitally hashed using a private key. Both the client and server have the same shared secret, which enables each request to be validated on either end. If the request transmission is compromised, the attacker cannot change the request or act as a user without the secret. HTTP signatures can be used only with API requests. They cannot be used in browser or mobile applications.
WARNING
By
September 2026
, all merchants using HTTP signature messaging must migrate to JSON Web Token (JWT) messaging in order to support message-level encryption (MLE). You risk transaction failures if you do not implement this update. If you are setting up your system to be REST-compliant for the first time,
Visa Acceptance Solutions
 recommends using JWT messaging.

Secure Communication Requirements

REST-compliant machines communicate with each other using
stateless messaging
. Stateless messaging is a loosely coupled connection between a client and server, where each message is self-contained. This connection enables the client and server to communicate without first establishing a communication channel and without managing the state between systems.
To ensure secure communications between the client and server, you must provide these security measures:
  • Sender Authentication:
     A receiver needs to know that a message comes from a trusted entity.
  • Message Encryption:
     By encrypting the message before transmission and decrypting the message when received, you prevent man-in-the-middle attacks.
IMPORTANT
When building your connection to the
Visa Acceptance Solutions
 payment gateway, ensure that you have implemented controls to prevent card testing or card enumeration attacks on your platform. When we detect suspicious transaction activity associated with your merchant ID, including a card testing or card enumeration attack,
Visa Acceptance Solutions
 reserves the right to enable fraud management tools on your behalf in order to mitigate the attack. The fraud team might also implement internal controls to mitigate attack activity. These controls block traffic that is perceived as fraudulent. Additionally, if you are using one of our fraud tools and experience a significant attack, our internal team might modify or add rules to your configuration to help prevent the attack and minimize the threat to our infrastructure. However, any actions taken by
Visa Acceptance Solutions
 would not replace the need for you to follow industry standard best practices to protect your systems, servers, and platforms.

Key Features of REST

These are the key features of REST:
  • Client/Server model:
     Clients and servers are independent from each other, enabling portability and scalability.
  • Stateless Communication:
     Each request is independent.
  • Uniform Interface:
     Architecture is simplified through uniform standards.

Components of REST

A REST message consists of these four components:
  • Endpoint:
     The endpoint is a Uniform Resource Identifier (URI) that shows where and how to find the resource on the internet. For example, to test an authorization request, you can send the request to this endpoint:
    https://apitest.visaacceptance.com
    /pts/v2/payments
    .
  • HTTP Method:
     The method is the action performed by the resource. There are four basic HTTP methods:
    • POST: Create a resource.
    • GET: Retrieve a resource.
    • PATCH: Modify a resource.
    • DELETE: Delete a resource.
  • Headers:
     The header is a collection of fields and their associated values. It provides information about the message to the receiver. Think of it as metadata about the message. The header also contains authentication information that indicates that the message is legitimate.
  • Body:
     The request in JSON format.

Overview of How to Set Up Your
Visa Acceptance Solutions
 Account

This overview lists the tasks you must complete in order to set up your
Visa Acceptance Solutions
 account for sending and receiving REST API messages using either JSON Web Token messaging or HTTP signature messaging.
WARNING
By
September 2026
, all merchants using HTTP signature messaging must migrate to JSON Web Token (JWT) messaging in order to support message-level encryption (MLE). You risk transaction failures if you do not implement this update. If you are setting up your system to be REST-compliant for the first time,
Visa Acceptance Solutions
 recommends using JWT messaging.

Figure:

Set Up Your
Visa Acceptance Solutions
 Account
To set up JSON web token messaging using P12 certificates, see Set Up a JSON Web Token Message Using P12 Certificates.
To set up JSON web token messaging using shared secret key pairs, see Set Up a JSON Web Token Message Using Shared Secret Keys.
To set up an HTTP signature messaging, see Set Up an HTTP Signature Message [DEPRECATING].

Set Up a JSON Web Token Message Using P12 Certificates

To set up JSON Web Token messaging using a
P12 certificate
, you must complete the tasks described in this section.

Figure:

Setting Up JSON Web Token a Messaging
  1. Sign up for a test account. See Sign Up for a Sandbox Account.
  2. Create a P12 certificate. See Create or Submit a P12 Certificate.
  3. Construct a message using a JSON Web Token. See Construct Messages Using JSON Web Tokens.
  4. (Optional) Enable the optional message-level encryption (MLE) feature. See Enable Message-Level Encryption.
  5. Go live by transitioning your sandbox account into a production account. See Going Live.

Sign Up for a Sandbox Account

To begin setting up your account, you must first sign up for a sandbox account. A sandbox account enables you to obtain your security keys and test your implementation.
IMPORTANT
A sandbox account cannot process live payments and is intended only for testing.
Follow these steps to sign up for a sandbox account:
  1. Go to the
    Visa Acceptance Solutions
     Developer Center sandbox account sign-up page:
  2. Enter your information into the sandbox account form, and click
    Create Account
    .
  3. Go to your email and find a message titled:
    Merchant Registration Details
    . Click
    Set up your username and password now
    .
    Your browser opens the New User Sign Up wizard.
  4. Enter the organization ID and contact email you supplied when you created your account. Follow the wizard pages to add your name, a username, and a password. Your username and password must meet these requirements:
    Username and Password Requirements
    Username Requirements
    Password Requirements
    • Length must be 3-36 characters.
    • Can only contain letters, numbers, periods, dashes, or underscores.
    • Length must be 12–50 characters.
    • Must contain one upper case letter.
    • Must contain one lower case letter.
    • Must contain one number.
    • Cannot contain the username or organization ID.
  5. Log in to the
    Business Center
    .
    When you log in for the first time, you must verify your identity through a system-generated email sent to your email account.
  6. Check your email for a message titled:
    Visa Acceptance Solutions
     Identification Code
    . A passcode is included in the message.
  7. Enter the passcode on the
    Verify your Identity
     page.
    You are directed to the
    Business Center
     home page.
    You have successfully signed up for a sandbox account.
    IMPORTANT
    A sandbox account cannot process live payments. After you verify that your system can send and receive REST messages, you can contact customer service to transition your sandbox account to a production account.

Create or Submit a P12 Certificate

This section describes how to create or submit a P12 certificate and how to extract its private key. A private key is necessary for you to construct JSON Web Tokens.
Create
 a P12 certificate if you need a new certificate.
Submit
 a P12 certificate if you want to use your own certificate.

Creating a P12 Certificate

Follow these steps to create a P12 certificate file if you are using JSON Web Tokens to secure communication:
  2. On the left navigation panel, choose
    Payment Configuration > Key Management
    .
  3. Click
    + Generate key
     on the Key Management page.

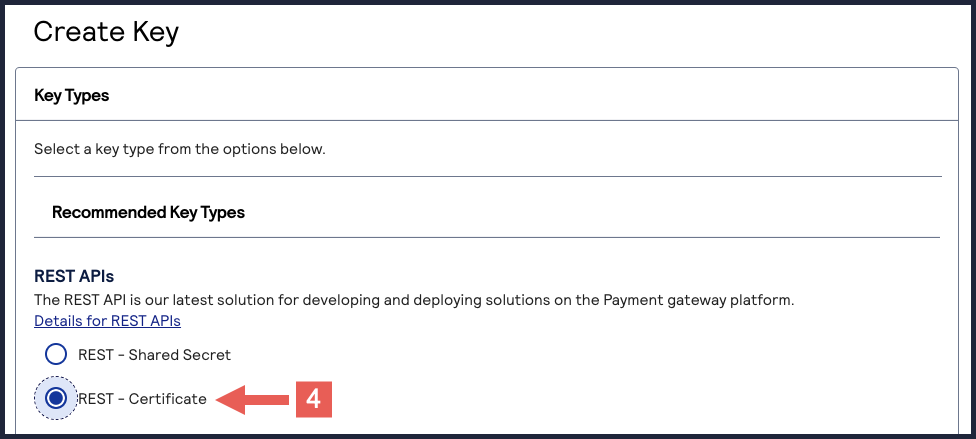

  4. Under REST APIs, choose
    REST – Certificate
    , and then click
    Generate key
    .
    If you are using a
    portfolio
     account, the Key options window appears, giving you the choice to create a meta key.
    For more information about how to create a meta key, see .

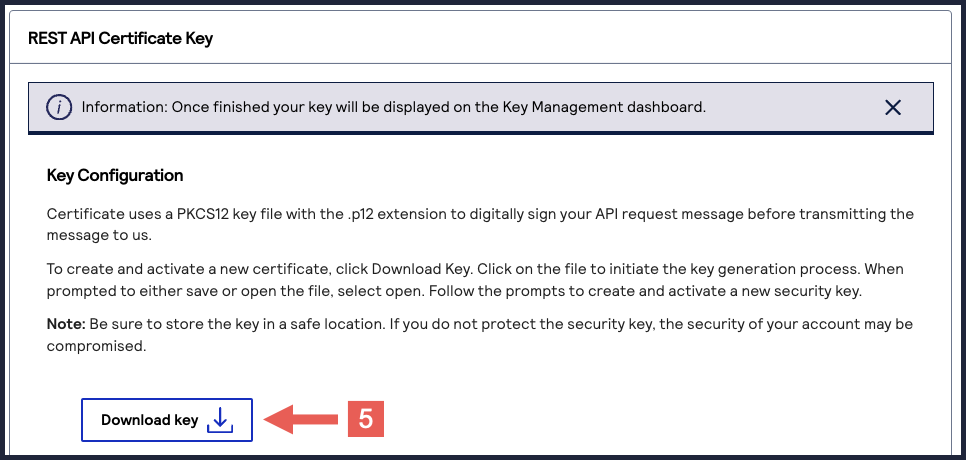

  5. Click
    Download key
     .
  6. Create a password for the certificate by entering one into the
    New Password
     and
    Confirm Password
     fields. Click
    Generate key
    .
    The
    .p12
     file downloads to your desktop.
    If prompted by your system, approve the location to which the key downloads.
To create or upload another key, click
Generate another key
. To view all of your created keys, go to the Key Management page.
IMPORTANT
Securely store the
.p12
 file and password in your system. These credentials are required in order to implement certain products, and you must be able to access them.

Submitting a P12 Certificate

Follow these steps to submit your own public PEM-formatted certificate signing request (CSR) if you are using JSON Web Tokens to secure communication. You also have the option to create a P12 certificate from your CSR to use for testing purposes.
  2. On the left navigation panel, choose
    Payment Configuration > Key Management
    .
  3. Click
    + Generate key
     on the Key Management page.
  4. Under REST APIs, choose
    REST – Certificate
    , and then click
    Generate key
    .
    If you are using a
    portfolio
     account, the Key options window appears, giving you the choice to create a meta key.
    For more information about how to create a meta key, see .

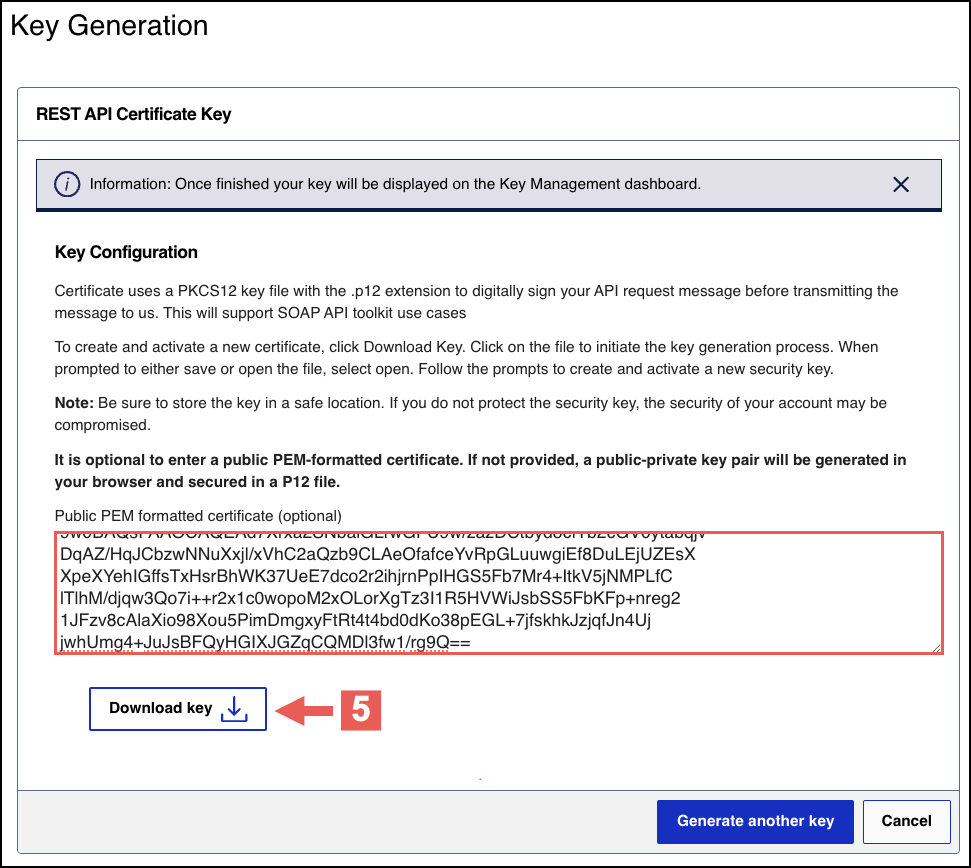

  5. Enter your public PEM-formatted certificate in the text box, then click
    Download key
     .
    If you need to generate your own CSR and private key, run this command. In this example,
    merchant
     is your organization or merchant ID (MID). You can extract the certificate value by opening the
    example.csr
     file using a text editor application.
    openssl req -new -newkey rsa:2048 -keyout private_key.pem -out example.csr -sha256 -nodes -subj "/CN=
    merchant
    "
  6. (Optional) To convert your submitted CSR into a
    .p12
     file, run this command. In this example,
    merchant
     is your organization or merchant ID (MID).
    You can use the P12 certificate for testing using the
    REST API Reference
     on the Developer Center.
    openssl pkcs12 -export -name "$(printf 'serialnumber=%s,cn=%s' "$(openssl x509 -in
    merchant
    _certChain.pem -noout -serial | cut -d= -f2 | xxd -r -p)" "$(openssl x509 -in
    merchant
    _certChain.pem -noout -subject | sed -n 's/.*CN=\([^/]*\).*/\1/p')" )" -out
    merchant
    .p12 -inkey private_key.pem -in
    merchant
    _certChain.pem
  7. When prompted, set a password for the
    .p12
     file.
To create or upload another key, click
Generate another key
. To view all of your created keys, go to the Key Management page.
IMPORTANT
Securely store your key's password in your system. These credentials are required to implement certain products and you must be able to access them.

Extracting the Private Key from Your P12 Certificate

When you have your P12 certificate, extract the private key from the certificate. Use this key to sign your header when sending an API request.
IMPORTANT
If you are using the SDK to establish communication, you do not need to extract the private key from the P12 certificate.
Prerequisite
You must have a tool such as OpenSSL installed on your system.
Extract the Private Key
Follow these steps to extract the private key using OpenSSL:
  1. Open the command-line tool and navigate to the directory that contains the P12 certificate.
  2. Enter this command:
    openssl pkcs12 -in [certificate name] -nodes -nocerts -out [private key name]
  3. Enter the password for the certificate.
    You set this password when you created the P12 certificate in the
    Business Center
    .
The new certificate is added to the directory with the private key name you supplied in Step 2.

Testing Your Private Key

After creating your key certificate, you must verify that it can successfully process API requests. This task explains how to test and validate your private key in the Developer Center and the
Business Center
.
Follow these steps:

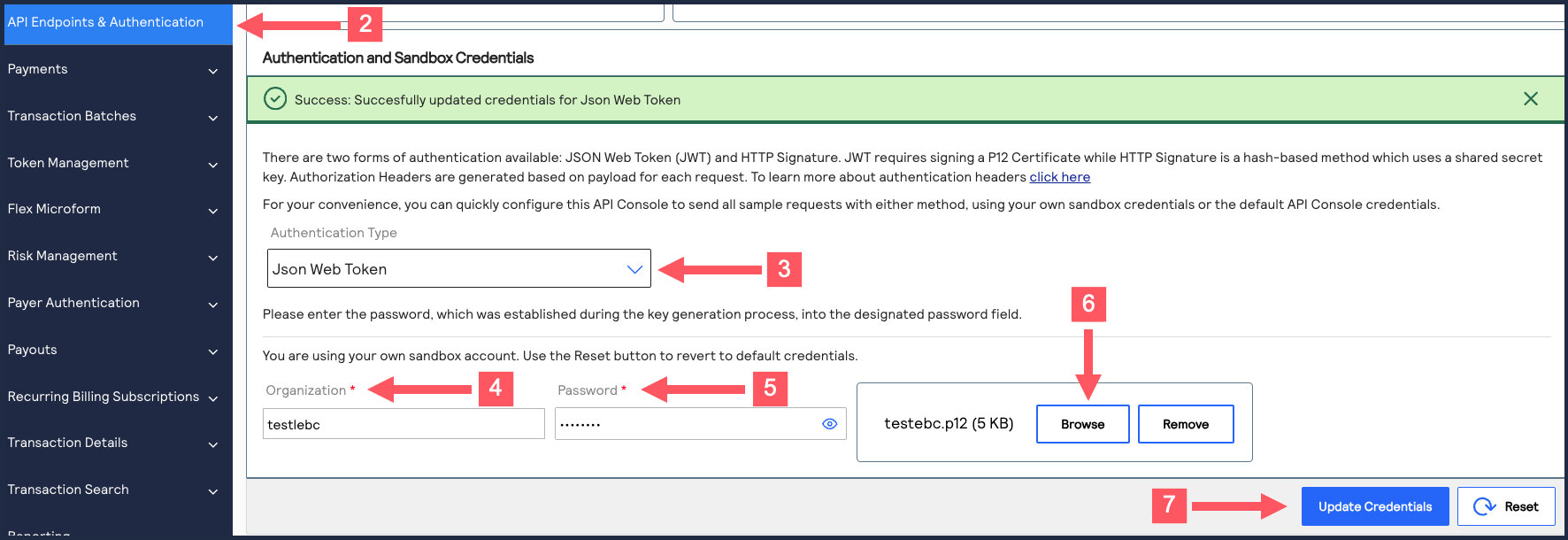

  2. On the left navigation panel, click .
  3. Under Authentication and Sandbox Credentials, go to the Authentication Type drop-down menu and choose
    JSON Web Token
    .
  4. Enter your organization ID in the
    Organization
     field.
  5. Enter your Password in the
    Password
     field.
  6. Click
    Browse
     and upload your p12 certificate from your desktop.
  7. Click
    Update Credentials
    .
    A confirmation message states that your credentials are successfully updated.
  8. Go to the Developer Center's API Reference and navigate to
    Payments >
    POST
     Process a Payment
    .
  9. Click
    Send
    .
    A message confirms that your request was successful with the status code 201.
  10. Log in to the
    Business Center
    :
  11. On the left navigation panel, choose
    Transaction Management > Transactions
    .
  12. Under Search Results, verify that the request ID from the test authorization response is listed in the Request ID column.
    If the test authorization was successful, a success message is present in the corresponding Applications column.

Construct Messages Using JSON Web Tokens

IMPORTANT
As of
February 2026
, there are new requirements for constructing a JWT. This section explains how to update your system to remain in compliance. By
September 2026
, all merchants using HTTP signature messaging must migrate to JSON Web Token (JWT) messaging in order to support message-level encryption (MLE).
This figure shows the steps required for using JSON Web Tokens (JWTs) to construct messages. Each step is described in the following subsections.

JSON Web Token Message Elements

A JWT message consists of HTTP headers and an HTTP message body.
HTTP Message Elements
Your HTTP message header must include these elements:
HTTP Message Header Elements
HTTP Header Element
Description
content-type
Also known as the Multipurpose Internet Mail Extension (MIME) type, this element identifies the media or file type of the resource (application/json).
host
The transaction endpoint. (
api.visaacceptance.com
)
authorization
JSON Web Signature (JWS) bearer token.
HTTP Message Body
Your API request.

Step 1: Set Known HTTP Headers

Set the values for these HTTP header elements. They do not require calculation.
content-type
Set to the media or file type resource.
host
Set to the endpoint.

Step 2: Set the JWS Header Claims

You must construct a
JSON Web Signature
 (JWS) token. To construct a JWS token, you must first set its header claim values.
These header claim values do not require calculation.
HTTP Message Header Fields
Header Field
Description
alg
The asymmetric algorithm you use to sign the token header. These algorithms are supported:
  • RS256 (default)
  • RS384
  • RS512
  • PS256
  • PS384
  • PS512
kid
The ID of the key you use to digitally sign the JWT. The key ID must be registered with the authorizing server. It is the key ID from your P12 certificate. For more information, see Create or Submit a P12 Certificate.
typ
The token type. Set to
JWT
.

Step 3: Set the JWS Body Claims

After you set the JWS header values, set these JWS body claim values:
JWS Body Claims
JWS Body Claim Field
Description
Data Type
digest
A Base64-encoded hash of the message payload.
Do not include the
digest
 field if the request message is empty, such as during a GET or DELETE request.
String
digestAlgorithm
The algorithm used to hash the message payload.
The message payload should be hashed using the SHA-256 algorithm.
Do not include the
digestAlgorithm
 field if the
digest
 field is not included.
String
exp
The time at which the JWS token expires. Field values cannot exceed two minutes after the message issue date, which is the
iat
 field value. This field is an HTTP-date value as defined in RFC7231.
For example, 01/01/2020 at 00:02:00 is
1577836920
.
String
iat
The date and time at which the message is issued. This field uses a
NumericDate
 value as defined in RFC 7519, which is the number of seconds since
1970‑01‑01T00:00:00Z
 (Unix epoch).
For example, 01/01/2020 at 00:00:00 is
1577836800
.
String
iss
The issuer identifier for the JWS token. Set to the organization ID that created the private key (P12 certificate). This value is used to validate the issuer.
String
jti
The unique token ID. This value is used for replay prevention.
Format the value using UUID version 4. For example:
6643fb9a-8093-47c6-95d3-8d69785b5e62
String
request-method
The HTTP request method. For example,
post
,
get
,
put
,
patch
, or
delete
.
It is standard practice to use lowercase values.
String
request-resource-path
The complete URL path for the HTTP request.
It is standard practice to use lowercase values.
String
v-c-jwt-version
The Visa JWT scheme version number. Set to
2
.
String
v-c-merchant-id
Your
Visa Acceptance Solutions
 transacting merchant ID (MID).
If you are a portfolio or merchant account user, set this to the transacting merchant ID you send requests on behalf of.
String
v-c-response-mle-kid
The message-level encryption response key ID, also known as the
REST–API Response MLE
 key.
String
The value of the
digest
 JWS claim is a hashed version of the HTTP message body that you must calculate.
Visa Acceptance Solutions
 uses this hash value to validate the integrity of your message body.
Follow these steps to calculate the digest hash:
  1. Generate the SHA-256 hash of the JSON payload (message body).
  2. Encode the hashed string to Base64.
  3. Add the message body hash to the
    digest
     JWS body claims.
  4. Add the algorithm used to hash the digest in the
    digestAlgorithm
     JWS body claims.
Example: Creating a Message Hash Using the Command Line
shasum
 Tool
echo -n "{"clientReferenceInformation":{"code":"TC50171_3"},"paymentInformation":{"card":{"number":
				"4111111111111111","expirationMonth":"12","expirationYear":"2031"}},"orderInformation":{"amountDetails":
				{"totalAmount":"102.21","currency":"USD"},"billTo”:{“firstName":"John","lastName":"Doe","address1":
				"1MarketSt","locality":"sanfrancisco","administrativeArea":"CA","postalCode":"94105","country":"US",
				"email":"
test@vas.com
","phoneNumber":"4158880000"}}}" | shasum -a 256
echo -n "6ae5459bc8a7d6a4b203e8a734d6a616725134088e13261f5bbcefc1424fc956" | base64
Example: Creating a Message Hash Using the Command Line
base64
 Tool
echo -n "6ae5459bc8a7d6a4b203e8a734d6a616725134088e13261f5bbcefc1424fc956" | base64
Example: Creating a Message Hash Using C#
public static string GenerateDigest() {
				var digest = "";
				var bodyText = "{ your JSON payload }";
				using (var sha256hash = SHA256.Create()) {
				byte[] payloadBytes = sha256hash
				.ComputeHash(Encoding.UTF8.GetBytes(bodyText));
				digest = Convert.ToBase64String(payloadBytes);
				digest = "SHA-256=" + digest;
				}
				return digest;
				}
Example: Creating a Message Using Java
public static String GenerateDigest() throws NoSuchAlgorithmException {
				String bodyText = "{ your JSON payload }";
				MessageDigest md = MessageDigest.getInstance("SHA-256");
				md.update(bodyText.getBytes(StandardCharsets.UTF_8));
				byte[] digest = md.digest();
				return "SHA-256=" + Base64.getEncoder().encodeToString(digest);
				}

Step 4: Calculate the JWS Signature

You can now calculate the JSON Web Signature (JWS). The JWS consists of the JWS header and claim set hashes in the following format. They are encrypted with the private key.
[JWS Header].[Claim Set]
Follow these steps to calculate the signature:
  1. Concatenate the JWS header and claim set hash strings with a period character (
    .
    ) between the hashes:
    [JWS Header].[Claim Set]
  2. Generate an encoded version of the text file using your private key from the
    .p12
     certificate. For more information, see Create or Submit a P12 Certificate.
  3. Base64-encode the signature output.
  4. After calculating the signature, you can construct a complete JWS token by combining the JWS header claims, body claims, and signature.
Example: Token Signature Hash
YjgwNGIxOTMxMzQ2NzhlYjdiMDdhMWZmYjZiYzUzNzliMTk5NzFmNjAzNWRmMThlNzk0N2NhY2U0YTEwNzYyYQ
Code Example: Encoding the Signature File Using OpenSSL
Encode the signature file using the
openssl
 tool.
openssl rsautl -encrypt -inkey publickey.key -pubin -in [signature-text-file]
					> [signature-encoded-file]
Code Example: Base64 Encoding the Signature File Using the Command Line
Encode the signature file using the
openssl
 tool and remove any padding.
base64 -i [signature-encoded-file]

Step 5: Complete the Message with JWTs

Combine all of the HTTP headers with your HTTP message body to construct your HTTP signature message.
If you have not already, you must construct the entire JWS token by combining the JWS header claims, body claims, and signature from Steps 2 – 4.

Enable Message-Level Encryption

IMPORTANT
There are additional tasks you must complete before you can enable message-level encryption. See the Prerequisites for MLE section below.
Message-Level Encryption (MLE) enables you to store information or communicate with other parties while helping to prevent uninvolved parties from understanding the stored information. Enabling MLE requires you to create a
REST-Certificate
 for encrypting your requests and a
REST – API Response MLE
 key for decrypting received responses. If your organization is using a meta key, the portfolio account or merchant account that created the meta key must also create the REST – API Response MLE key.
MLE provides enhanced security for message payload by using an asymmetric encryption technique (public-key cryptography). The message encryption is implemented with symmetric encryption using Advanced Encryption Standard (AES), Galois Counter Mode (GCM) with 256-bit key size. The encryption of keys is supported using RSA Optimal Asymmetric Encryption Padding (OAEP) with 2048-bit key size. The encryption service is based on JSON Web Encryption (JWE), works on top of SSL and requires separate key-pairs for request and response legs of the transaction.
MLE is required for APIs that primarily deal with sensitive transaction data, both financial and non-financial. These are the types of sensitive transaction data:
  • Personal identification information (PII)
  • Personal account number (PAN)
  • Personal account information (PAI)
MLE is supported when using JSON web tokens.
Each of these authentication schemes uses an encrypted payload, called the
JWE
. A JWE token has these five components, with each component separated by a period (.):
  • JOSE header containing four elements:
    "alg": "RSA-OAEP-256", // The algorithm used to encrypt the CEK.
"enc": "A256GCM", // The algorithm used to encrypt the message.
"iat": "1702493653", // The current timestamp in milliseconds.
"kid": "keyId" // The serial number of shared public cert for encryption of CEK.
  • JWE encrypted key
  • JWE initialization vector
  • JWE additional authentication data (AAD)
  • JWE ciphertext and authentication tag

Prerequisites for MLE

Before you can enable message-level encryption (MLE), you must complete these requirements:
  • Verify that the
    Visa Acceptance Solutions
     products you are integrating support MLE.
  • Ensure that your system is configured to read the public key and encrypt the API payload.

Create or Submit a REST—API Response MLE Key

Before you can enable your system to support MLE, you must create or upload a
REST—API response MLE
 certificate. After creating or uploading the certificate, you can extract the certificate's key to begin enabling MLE.
Follow these steps to create or submit an API Response MLE certificate in the
Business Center
:
  2. On the left navigation panel, choose
    Payment Configuration > Key Management
    .
  3. Click
    + Generate key
     on the Key Management page.

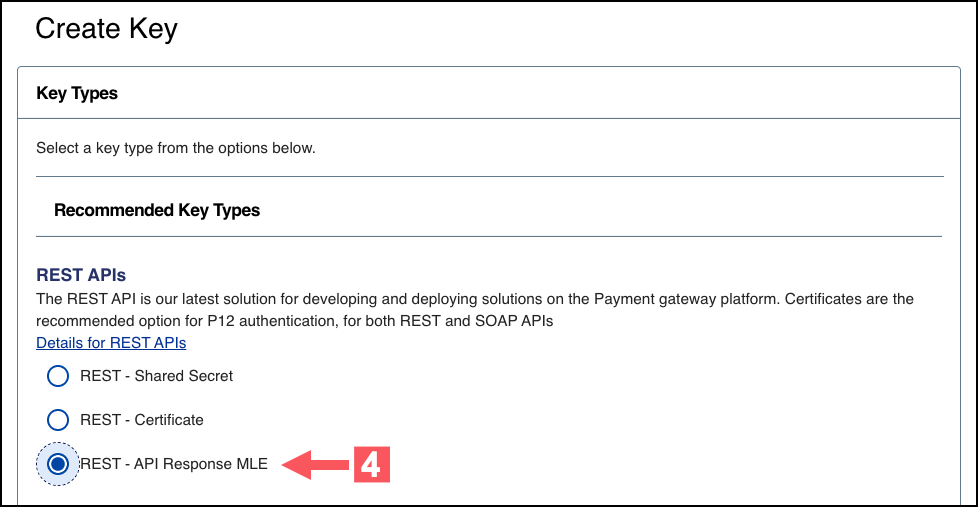

  4. Under REST APIs, choose
    REST – API Response MLE
    , and then click
    Generate key
    .

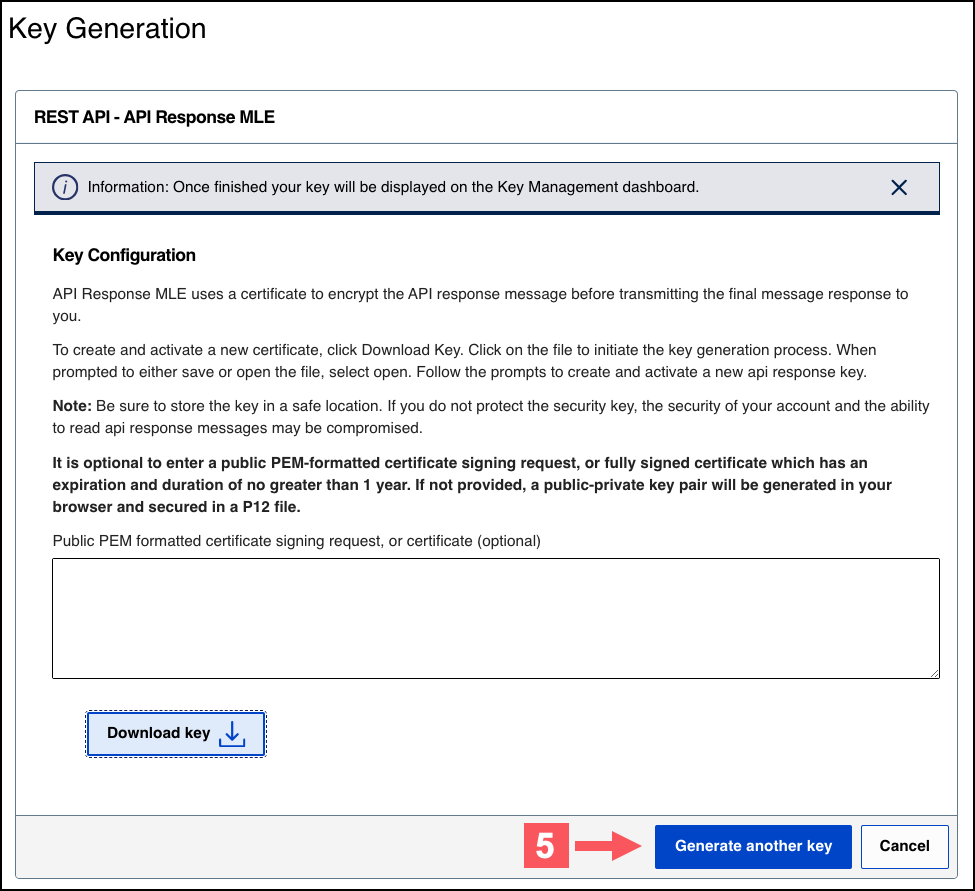

  5. Choose one of these options to download your key:
    • To create a new API response MLE certificate, click
      Download key
       .
    • To upload your own certificate, enter your public PEM-formatted certificate in the text box, and then click
      Download key
       . The
      .pem
       file downloads to your desktop. If prompted by your system, approve the location to which the file downloads.
  6. If you are creating a certificate, the Set a Password window appears. Create a password for the certificate by entering the password into the
    New Password
     and
    Confirm Password
     fields, and then click
    Generate key
    .
    The
    .p12
     file downloads to your desktop. If prompted by your system, approve the location to which the key downloads.
    To create or upload another key, click
    Generate another key
    . To view all of your created keys, go to the Key Management page.
    IMPORTANT
    Securely store the
    .p12
     file and password in your system. These credentials are required in order to implement certain products, and you must be able to access them.
  7. Click
    Cancel
    .
    The Key Management page appears.

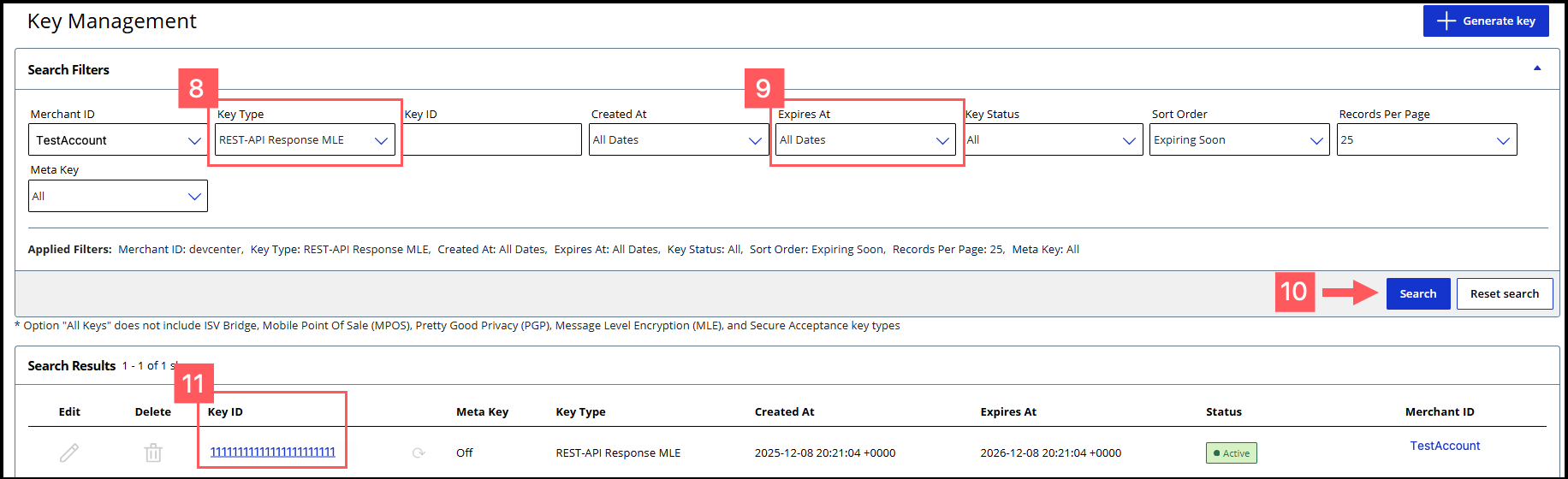

  8. Click the
    Key Type
     filter and choose
    REST-API Response MLE
    .
  9. Click the
    Expires At
     filter and choose
    All Dates
    .
  10. Click
    Search
    .
  11. Find the REST–API Response key that you created in the Search Results table and save its key ID.
    The key ID is needed to test and configure your system to use MLE.
Test Your REST–API Response MLE Key
To test your REST–API Response key, see Test Your REST—API Response MLE Key.

Overview of MLE Setup Tasks

Use the information in this section to configure your system with a custom MLE using JWTs.
If you do not want to set up a custom MLE, you can use the REST Client SDK instead. For more information, see the REST Client SDKs in GitHub.

Figure:

Overview of MLE Set-Up Tasks
  1. Import the required programming libraries for your system.
  2. Import these three certificates:
    • Signing certificate (REST – Certificate).
    • MLE request certificate (SJC public certificate)
    • MLE response certificate (REST – API Response MLE)
  3. Encrypt the JSON request message using a JSON Web Encryption (JWE) that uses the SJC public certificate.
  4. Create the HTTP body in this format:
    {"encryptedRequest": "
    JWE-with-SJC
    "}
    .
  5. Create the JSON Web Signature (JWS) payload with these JWT payload fields and your signing certificate's private key. For descriptions of these fields, see the Headers table and Message Body Fields table in Construct Messages Using JSON Web Tokens.
    Header Fields
    • alg
    • kid
    • type
    Message Body Fields
    • digestAlgorithm
    • digest
       of the HTTP body
    • exp
    • iat
    • iss
    • jti
    • request-host
    • request-method
    • request-resource-path
    • v-c-jwt-version
    • v-c-merchant-id
    • v-c-response-mle-kid
       from the MLE response certificate.
  6. Sign the JWS with your signing certificate and send it as
    Authorization: Bearer
    , such as a P12 certificate.
  7. Receive an encrypted response and decrypt it with the MLE private key. You will receive the response in this format:
    {"encryptedResponse": "
    JWE-with-ResponseMLECertificate
    "}
    The JWE contains a JOSE header containing these four default elements:
    "alg": "RSA-OAEP-256", // The algorithm used to encrypt the CEK.
"enc": "A256GCM", // The algorithm used to encrypt the message.
"iat": "
    1702493653
    ", // The current timestamp in milliseconds.
"kid": "
    keyId
    " // The serial number of the
    v-c-api-response-mle-kid
     from the authentication JWS in step 5.

Java Example: Enabling MLE Using JWTs

This example describes a possible way in which to configure your system to create a custom MLE with JWTs. These steps use the Java programming language.
  1. Import your preferred libraries to support MLE. In this step, the configuration uses Java leveraging the open source Nimbus JOSE and Bouncy Castle libraries.
    // Nimbus JOSE + JWT
import com.nimbusds.jose.JWEAlgorithm;
import com.nimbusds.jose.JWEHeader;
import com.nimbusds.jose.JWEObject;
import com.nimbusds.jose.JWSAlgorithm;
import com.nimbusds.jose.JWSHeader;
import com.nimbusds.jose.JWSObject;
import com.nimbusds.jose.JOSEObjectType;
import com.nimbusds.jose.EncryptionMethod;
import com.nimbusds.jose.Payload;
import com.nimbusds.jose.crypto.RSADecrypter;
import com.nimbusds.jose.crypto.RSAEncrypter;
import com.nimbusds.jose.crypto.RSASSASigner;

// BouncyCastle (PEM parsing + cert conversion)
import org.bouncycastle.cert.X509CertificateHolder;
import org.bouncycastle.cert.jcajce.JcaX509CertificateConverter;
import org.bouncycastle.openssl.PEMKeyPair;
import org.bouncycastle.openssl.PEMParser;
import org.bouncycastle.openssl.jcajce.JcaPEMKeyConverter;
  2. Import the signing, MLE, and SJC certificates. The P12 certificate as the signing certificate.
    public final class KeyPairMaterial {
    public final PrivateKey privateKey;
    public final X509Certificate cert;
    public KeyPairMaterial(PrivateKey k, X509Certificate c) {
        this.privateKey = k;
        this.cert = c;
    }
}

public final class CryptoMaterialDual {
    // Merchant: JWS (REST – Certificate)
    public final KeyPairMaterial signingCert;
    // Merchant: Response decryption (API Response MLE)
    public final KeyPairMaterial responseCert;
    // Platform encryption cert (SJC)
    public final X509Certificate sjcCert;

    public CryptoMaterialDual(KeyPairMaterial signingCert, KeyPairMaterial responseCert, X509Certificate sjcCert) {
        this.signingCert = signingCert;
        this.responseCert = responseCert;
        this.sjcCert = sjcCert;
    }
}
  3. Unpack your imported certificates into a usable format for your system.
    Create this method for your system to read your
    .p12
     file, if you are using the P12 certificate.
    static KeyPairMaterial loadKeyPairFromP12(Path p12Path, char[] password, String keyAlias) throws Exception {
    KeyStore ks = KeyStore.getInstance("PKCS12");
    try (InputStream in = Files.newInputStream(p12Path)) {
        ks.load( in , password);
    }
    KeyStore.PrivateKeyEntry entry = (KeyStore.PrivateKeyEntry) ks.getEntry(
        keyAlias, new KeyStore.PasswordProtection(password));
    return new KeyPairMaterial(entry.getPrivateKey(), (X509Certificate) entry.getCertificate());
}
    Create this method for your system to read the PEM chain and private key.
    static KeyPairMaterial loadKeyPairFromPem(Path certificateChainPem, String privateKeyPem) throws Exception {
    X509Certificate leaf = readPemCerts(certificateChainPem).get(0);
    PrivateKey key = readPkcs8PrivateKey(privateKeyPem);
    return new KeyPairMaterial(key, leaf);
}
    Create this method for your system to read the SJC from the
    .p12
     file or PEM chain.
    static X509Certificate loadSjcFromP12(Path p12Path, char[] password, String sjcAlias) throws Exception {
    KeyStore ks = KeyStore.getInstance("PKCS12");
    try (InputStream in = Files.newInputStream(p12Path)) {
        ks.load( in , password);
    }
    return (X509Certificate) ks.getCertificate(sjcAlias);
}

static X509Certificate loadSjcFromPem(Path sjcCertPem) throws Exception {
    return readPemCerts(sjcCertPem).get(0);
}
    Create this method to include PEM helper functions.
    static List < X509Certificate > readPemCerts(Path pemPath) throws Exception {
    try (Reader r = Files.newBufferedReader(pemPath); org.bouncycastle.openssl.PEMParser p = new org.bouncycastle.openssl.PEMParser(r)) {
        var xconv = new org.bouncycastle.cert.jcajce.JcaX509CertificateConverter().setProvider("BC");
        List < X509Certificate > certs = new ArrayList < > ();
        Object o;
        while ((o = p.readObject()) != null) {
            if (o instanceof org.bouncycastle.cert.X509CertificateHolder h) certs.add(xconv.getCertificate(h));
        }
        return certs;
    }
}

static PrivateKey readPkcs8PrivateKey(String pem) throws Exception {
    try (var parser = new org.bouncycastle.openssl.PEMParser(new StringReader(pem))) {
        Object o = parser.readObject();
        var conv = new org.bouncycastle.openssl.jcajce.JcaPEMKeyConverter().setProvider("BC");
        if (o instanceof org.bouncycastle.asn1.pkcs.PrivateKeyInfo pki) return conv.getPrivateKey(pki);
        if (o instanceof org.bouncycastle.openssl.PEMKeyPair kp) return conv.getPrivateKey(kp.getPrivateKeyInfo());
        throw new IllegalArgumentException("Expect PKCS#8 private key PEM");
    }
}
  4. Create these methods as helpers for encrypting and signing.
    static String kidFromCert(X509Certificate cert) {
    String dn = cert.getSubjectDN().getName().toUpperCase();
    int i = dn.indexOf("SERIALNUMBER=");
    if (i >= 0) {
        int j = dn.indexOf(",", i);
        if (j < 0) j = dn.length();
        return dn.substring(i + "SERIALNUMBER=".length(), j).trim();
    }
    return cert.getSerialNumber().toString();
}

static String encryptToJwe(String json, X509Certificate sjcCert) throws Exception {
    var header = new com.nimbusds.jose.JWEHeader.Builder(
            com.nimbusds.jose.JWEAlgorithm.RSA_OAEP,
            com.nimbusds.jose.EncryptionMethod.A256GCM)
        .contentType("JWT")
        .keyID(kidFromCert(sjcCert))
        .build();
    var jwe = new com.nimbusds.jose.JWEObject(header, new com.nimbusds.jose.Payload(json));
    jwe.encrypt(new com.nimbusds.jose.crypto.RSAEncrypter((RSAPublicKey) sjcCert.getPublicKey()));
    return jwe.serialize();
}

static String sha256Base64(String body) throws Exception {
    MessageDigest md = MessageDigest.getInstance("SHA-256");
    return Base64.getEncoder().encodeToString(md.digest(body.getBytes(StandardCharsets.UTF_8)));
}

static String signAsJws(String payload, KeyPairMaterial signingCert) throws Exception {
    var header = new com.nimbusds.jose.JWSHeader.Builder(com.nimbusds.jose.JWSAlgorithm.RS256)
        .keyID(kidFromCert(signingCert.cert))
        .type(com.nimbusds.jose.JOSEObjectType.JWT) // typ=JWT
        .build();
    var jws = new com.nimbusds.jose.JWSObject(header, new com.nimbusds.jose.Payload(payload));
    jws.sign(new com.nimbusds.jose.crypto.RSASSASigner(signingCert.privateKey));
    return jws.serialize();
}

static String decryptJwe(String compactJwe, KeyPairMaterial responseCert) throws Exception {
    var jwe = com.nimbusds.jose.JWEObject.parse(compactJwe);
    jwe.decrypt(new com.nimbusds.jose.crypto.RSADecrypter((RSAPrivateKey) responseCert.privateKey));
    return jwe.getPayload().toString();
}
  5. Create a class that uses the methods described in the above steps to encrypt and decrypt your payloads with MLE using JWTs.
    // Example mix:
// - REST – Certificate from PKCS#12
// - API Response MLE from PEM
// - SJC from PEM
KeyPairMaterial signingCert = loadKeyPairFromP12(
Paths.get("merchant.p12"), "password".toCharArray(), "merchant");
KeyPairMaterial responseCert = loadKeyPairFromPem(
Paths.get("api_response_mle_chain.pem"), Files.readString(Paths.get("api_response_mle_private_key.pem")));
X509Certificate sjc = loadSjcFromPem(Paths.get("sjc_certificate.pem"));

CryptoMaterialDual mat = new CryptoMaterialDual(signingCert, responseCert, sjc);

// 1) Build your request JSON
String requestJson = new org.json.JSONObject()
.put("amount", "10.00")
.put("currency", "USD")
.put("reference", "ORDER-12345")
.toString();

// 2) Encrypt request body to JWE using SJC public cert
String encryptedJwe = encryptToJwe(requestJson, mat.sjcCert);

// 3) Build the HTTP body (this is what you’ll hash for the digest)
String httpBody = new org.json.JSONObject()
.put("encryptedRequest", encryptedJwe)
.toString();

// 4) Build JWS payload: include iat, response kid, digestAlgorithm, and digest of httpBody
String digestB64 = sha256Base64(httpBody);
String jwsPayload = new org.json.JSONObject()
.put("iat", java.time.Instant.now().getEpochSecond())
.put("v-c-api-response-mle-kid", kidFromCert(mat.responseCert.cert))  // instruct server to encrypt to your API Response MLE key
.put("digestAlgorithm", "SHA-256")
.put("digest", digestB64)
.toString();

// 5) Sign the JWS with the REST – Certificate private key
String signedJws = signAsJws(jwsPayload, mat.signingCert);

// 6) Send the HTTP request
// POST /your/api
// Content-Type: application/json
// Authorization: Bearer <signedJws>
/*
Body:
{ "encryptedRequest": "<encryptedJwe>" }
*/

// 7) Handle the response (decrypt if needed with API Response MLE private key)
String apiResponse = /* http call result as string */;
org.json.JSONObject resp = new org.json.JSONObject(apiResponse);
String finalPayload = resp.has("encryptedResponse")
? decryptJwe(resp.getString("encryptedResponse"), mat.responseCert)
: apiResponse;

Test Your Setup

You can send a test API request to validate that your account, API key, JWT messages, and MLE security are working as intended.
Visa Acceptance Solutions
Visa Acceptance Platform
 recommends that you test and verify that your payment system can securely send and receive REST API messages before transitioning to a production account.

Postman Testing

You can use Postman to verify your HTTP signature message. To download a Postman collection of basic payment API requests, see the REST API collection on the Postman website.
When testing an API outside of the Developer Center's API Reference sandbox, send your test API requests to the test server:
https://apitest.visaacceptance.com
For example, to test an authorization request, you can send the request to this endpoint:
https://apitest.visaacceptance.com
/pts/v2/payments

Test Your REST—API Response MLE Key

Follow these steps to verify that your API response MLE key is working. If you have not already created or submitted an API response MLE certificate, see the Create or Submit a REST—API Response MLE Key section in Enable Message-Level Encryption.
  1. Go to the REST API Reference page in the
    Visa Acceptance Solutions
     Developer Center:
  2. On the left navigation panel, choose an API that supports MLE. For testing purposes, you can choose
    Intelligent Commerce > Intelligent Commerce Product > Enroll a Card
    .
    MLE support is indicated by
    Request MLE
     and
    Response MLE
     at the top of the screen.
  3. Choose the
    MLE Configuration
     tab.
  4. In the Message Level Encryption Credentials section, enter your API response MLE key credentials:
    • Response encryption:
       Enter the key ID of your API response MLE key.
      You saved this key ID in Step 10 in the Create or Submit an API Response MLE Key section in Enable Message-Level Encryption.
    • Response decryption:
       Click
      Browse
       to submit your own private decryption key from your local system. Only
      .p12
       files are supported.
  5. Click
    Update Credentials
    .
  6. From the
    Send
     drop-down menu, choose
    Send Request with Message Level Encryption
    .
  7. Click
    Send
    .
  8. When a
    Success: HTTP Status Code: 201
     message displays in the Response section, your API response key is properly configured.

Going Live

When you are ready to process payments in a live environment, you must transition your account to the live status with a valid configuration for your chosen payment processor. When your account is live, your transaction data flows through the production
Visa Acceptance Solutions
 gateway, to your processor, and on to the appropriate payment network.
To transition your account:
  1. Sign up for a merchant account.
  2. Contact Sales to establish a contract with
    Visa Acceptance Solutions
     that enables you to process real transactions and receive support.
  3. Submit a merchant ID (MID) activation request.
It can take up to three business days for the MID to become active.

Create a Merchant ID

The merchant ID (MID) identifies you and your transactions, which requires you to include it in each transaction request. When you signed up for a sandbox account, you received a merchant ID for testing purposes. If you choose, you can use that merchant ID as your production ID.
Follow these steps to sign up for a merchant account in order to create a production MID:
  1. Go to the
    Business Center
     Sandbox Account Sign Up page, enter the required information, and click
    Create Account
    .
    Choose your merchant ID name. It cannot be changed. This name is not visible to your customers.
  2. Review your information entered, especially your business email address. Your merchant ID registration information will be sent to the email entered on this form.
  3. Look for an email from customer support titled:
    Visa Acceptance Solutions
     Merchant Evaluation Account
    .
    This email contains your organization ID and contact email associated with your MID.
  4. Look for an email titled:
    Merchant Registration Details
    . Click the
    Set up your username and password now
     link.
    Your browser opens the New User Sign Up wizard.
  5. Enter the organization ID and contact email you supplied previously. Follow the wizard pages to add your name, a username, and password.
  6. Log in to the
    Business Center
    .
    When you log in for the first time, you will be asked to identify yourself through a system-generated email that is sent to your email account.
  7. Look for an email titled:
    Visa Acceptance Solutions
     Identification Code
    . Save the passcode in the email.
  8. Enter the passcode on the Verify your Identity page. You are directed to the
    Business Center
     home page.
You have successfully created a merchant ID and merchant account.

Activate Your Merchant ID

The activation process, also known as
going live
, transitions your MID and account from test status to live status, enabling you to process real transactions in production. It can take up to three business days for the MID to become active.
To transition your account, complete these steps:
  1. Sign in to the
    support center
     as an administrator.
  2. Enter your credentials and log in to your test environment. The organization ID is your MID.
  3. In the
    Business Center
    , go to
    Support Cases > MID Configuration Request
    . The MID Configuration Request page should be open.
  4. Click
    MID Activation
    .
  5. In the
    Description
     field, enter the merchant ID that you want to take live.
  6. Choose a processor configuration, and enter the name of your processor.
    If you are unsure of the processor name, contact your merchant service provider or your merchant acquiring bank.
  7. Choose the environments to which this change applies (test or production).
  8. Click
    Service Enablement
     and list the products and services that you intend to use.
  9. Click
    Submit
    .

Production Endpoints

Send API requests using your production account to the production server:
https://api.visaacceptance.com
For example, send a live authorization request to this endpoint:
https://api.visaacceptance.com
/pts/v2/payments

Set Up a JSON Web Token Message Using Shared Secret Keys

IMPORTANT
If you are using HTTP signature security for messaging, use this section to migrate your system to support JSON Web Token messaging. By
September 2026
, all merchants using HTTP signature messaging must migrate to JSON Web Token (JWT) messaging in order to support message-level encryption (MLE).
To set up JSON Web Token messaging using a
shared secret key pair
, you must complete the tasks described in this section.

Figure:

Set Up JSON Web Token a Messaging
  1. Sign up for a test account. See Sign Up for a Sandbox Account.
  2. Create a shared secret key pair. See Create a Shared Secret Key Pair.
  3. Construct a message using a JSON web token. See Construct Messages Using JSON Web Tokens.
  4. Enable the optional message-level encryption (MLE) feature. See Enable Message-Level Encryption.
  5. Test your REST transaction messages. See Test Your Setup.
  6. Go live by transitioning your sandbox account into a production account. See Going Live.

Sign Up for a Sandbox Account

To begin setting up your account, you must first sign up for a sandbox account. A sandbox account enables you to obtain your security keys and test your implementation.
IMPORTANT
A sandbox account cannot process live payments and is intended only for testing.
Follow these steps to sign up for a sandbox account:
  1. Go to the
    Visa Acceptance Solutions
     Developer Center sandbox account sign-up page:
  2. Enter your information into the sandbox account form, and click
    Create Account
    .
  3. Go to your email and find a message titled:
    Merchant Registration Details
    . Click
    Set up your username and password now
    .
    Your browser opens the New User Sign Up wizard.
  4. Enter the organization ID and contact email you supplied when you created your account. Follow the wizard pages to add your name, a username, and a password. Your username and password must meet these requirements:
    Username and Password Requirements
    Username Requirements
    Password Requirements
    • Length must be 3-36 characters.
    • Can only contain letters, numbers, periods, dashes, or underscores.
    • Length must be 12–50 characters.
    • Must contain one upper case letter.
    • Must contain one lower case letter.
    • Must contain one number.
    • Cannot contain the username or organization ID.
  5. Log in to the
    Business Center
    .
    When you log in for the first time, you must verify your identity through a system-generated email sent to your email account.
  6. Check your email for a message titled:
    Visa Acceptance Solutions
     Identification Code
    . A passcode is included in the message.
  7. Enter the passcode on the
    Verify your Identity
     page.
    You are directed to the
    Business Center
     home page.
    You have successfully signed up for a sandbox account.
    IMPORTANT
    A sandbox account cannot process live payments. After you verify that your system can send and receive REST messages, you can contact customer service to transition your sandbox account to a production account.

Create a Shared Secret Key Pair

You must create a shared secret key pair to use JWT message security. How you create your shared secret key pair is determined by your
Visa Acceptance Solutions
 account type.
Transacting merchant account users can create their own unique shared secret key. Portfolio and merchant account users must create a
meta key
 of a shared secret key. Meta keys enable an organization administrator to create a single shared secret key. That key is assigned to some or all transacting merchants in their organization. The purpose of a meta key is to reduce the time needed to manage an organization's keys. For example, by assigning the same meta key to all of your transacting merchants, you need to update only one key when it expires instead of having to update each transacting merchant's key when it expires.
For more information about meta keys, see the Meta Key Creation and Management section in the
Creating and Using Security Keys User Guide
.

Figure:

Account Type Overview
Portfolio
A portfolio account represents the partner user. This account type can create and manage merchant accounts in the test and production environments. To create a shared secret meta-key as a portfolio user, see Portfolio User: Create a Shared Secret Meta Key.
Merchant
A merchant account represents the merchant administrator user. This account type can create and manage multiple transacting merchant accounts in their organization. To create a shared secret meta-key as a merchant user, see Merchant Account User: Create a Shared Secret Meta Key.
Transacting Merchant
A transacting merchant represents the merchant user who is processing transactions. This account type is typically the account that sends API requests. To create a shared secret key pair as a transacting merchant, see Creating a Shared Secret Key Pair.

Creating a Shared Secret Key Pair

Follow these steps to create a shared secret key pair:
IMPORTANT
Only transacting merchant account users can complete this task.
  2. On the left navigation panel, choose
    Payment Configuration > Key Management
    .
  3. Click
    + Generate key
     on the Key Management page.
  4. Under REST APIs, choose
    REST – Shared Secret
     and then click
    Generate key
    .
    The REST API Shared Secret Key page appears.
  5. Click
    Download key
     .
    The
    .pem
     file downloads to your desktop.
To create or upload another key, click
Generate another key
. To view all of your created keys, go to the Key Management page.
IMPORTANT
Securely store the key credentials and
.pem
 file in your system. These credentials are required in order to implement certain products, and you must be able to access them.
What to do next
To test your shared secret key pair, see Test Your Shared Secret Key Pair.

Merchant Account User: Create a Shared Secret Meta Key

This section describes how to create a meta key as a merchant account user in the
Business Center
.
IMPORTANT
Only merchant account users can complete this task.
IMPORTANT
If you would like to create meta keys using the API, contact your support team for more information.
Follow these steps to create a meta key for a shared secret key pair:
  1. Log in to the
    Business Center
    :
  2. On the left navigation panel, choose
    Payment Configuration > Key Management
    .
    If you are using a portfolio account to create a meta key for one of your merchant accounts, you can switch to a merchant account by clicking
    Switch merchant
    .
    The Quick Merchant Switch page appears.
    Choose the merchant account ID that you want to switch to, and click
    Switch
    .
  3. In the
    Merchant ID
     search filter, choose your merchant account ID.
    If you logged in from a portfolio user account or the account (
    _acct
    ) level, verify that the merchant ID you choose does not contain
    _acct
     in the ID name.
  4. Click
    + Generate key
    .
    The Create Key page appears.
  5. Choose
    REST – Shared Secret
     and click
    Generate key
    .
    The Key options window appears.
  6. Check the
    Create as a Meta-Key
     box and click
    Continue
    .
  7. Choose one of these options to assign the key:
    • To assign this key to all accounts in the current portfolio, choose
      All current and future Merchant IDs
      , click
      Create key
      , and continue to the Create Key page. All future merchant IDs will be automatically assigned this key. You are done and do not need to proceed with the following steps.
    • To assign this key to a specific merchant or group of merchants, choose
      Custom Merchant ID selection
       and then click
      Create key
      . This key is not automatically assigned to any future merchants. Proceed to the following steps.
  8. Click
    + Add custom merchant ids
    . The Add Custom Merchant IDs page appears.
    By default, all merchant IDs are shown in the Merchant IDs table. To limit the list to a subset of merchant IDs, click
    + Add filter
    , choose a search filter from the drop-down menu, and click
    Search
    .
  9. Check one or more transacting MID account boxes, and click
    Submit
    .
    The Key Generation page opens.
  10. Click
    Create key
    .
    Continue to the Create Key page to view your new key.
    You can also generate a new key by clicking
    + Generate Key
     again.

AFTER COMPLETING THE TASK

To test your shared secret key pair, see Test Your Shared Secret Key Pair.

Portfolio User: Create a Shared Secret Meta Key

This section describes how to create a meta key as a portfolio user in the
Business Center
.
IMPORTANT
Only portfolio account users can complete this task.
IMPORTANT
If you would like to create meta keys using the API, contact your support team for more information.
Follow these steps to create a meta key for a shared secret key pair:
  1. Log in to the
    Business Center
    :
  2. On the left navigation panel, choose
    Payment Configuration > Key Management
    .
  3. In the
    Merchant Id
     field, choose your portfolio ID if it is not already chosen by default.
  4. Click
    + Generate key
    .
    The Create Key page appears.
  5. Choose
    REST – Shared Secret
     and click
    Generate key
    .
    The Key options page appears.
  6. Check the
    Create as a Meta-Key
     box and click
    Continue
    .
  7. Choose one of these options to assign the key:
    • To assign this key to all accounts in the current portfolio, choose
      All current and future Merchant IDs
      , click
      Create key
      , and continue to the Create Key page. All future merchant IDs will be automatically assigned this key. You are done and do not need to proceed with the following steps.
    • To assign this key to a specific merchant or group of merchants, choose
      Custom Merchant ID selection
       and then click
      Create key
      . This key is not automatically assigned to any future merchants. Proceed to the following steps.
  8. Click
    + Add custom merchant ids
    . The Add Custom Merchant IDs page appears.
    By default, all merchant IDs are shown in the Merchant IDs table. To limit the list to a subset of merchant IDs, click
    + Add filter
    , choose a search filter from the drop-down menu, and click
    Search
    .
  9. Check one or more transacting MID account boxes, and click
    Submit
    .
    The Key Generation page opens.
  10. Click
    Create key
    .
    Continue to the Create Key page to view your new key.
    You can also generate a new key by clicking
    + Generate Key
     again.

AFTER COMPLETING THE TASK

To test your shared secret key pair, see Test Your Shared Secret Key Pair.

Test Your Shared Secret Key Pair

After creating your key certificate, you must verify that your key can successfully process API requests. Follow these steps to validate your key certificate in the Developer Center and the
Business Center
.
  2. On the left navigation panel, click .
  3. Under Authentication and Sandbox Credentials, go to the Authentication Type drop-down menu and choose
    HTTP Signature
    .
  4. Enter your organization ID in the
    Organization ID
     field.
  5. Enter your key, also known as your private key, in the
    Key
     field.
  6. Enter your secret key, also known as your public key, in the
    Shared Secret Key
     field.
  7. Click
    Update Credentials
    .
  8. Click
    Send
    .
    A message confirms that your request was successful with the status code 201.
  9. Log in to the
    Business Center
    :
  10. On the left navigation panel, choose
    Transaction Management > Transactions
    .
  11. Under Search Results, verify that the request ID from the test authorization response is listed in the Request ID column.
    If the test authorization was successful, a success message is present in the corresponding Applications column.

Construct Messages Using JSON Web Tokens

IMPORTANT
As of
February 2026
, there are new requirements for constructing a JWT. This section explains how to update your system to remain in compliance. By
September 2026
, all merchants using HTTP signature messaging must migrate to JSON Web Token (JWT) messaging in order to support message-level encryption (MLE).
This figure shows the steps required for using JSON Web Tokens (JWTs) to construct messages. Each step is described in the following subsections.

JSON Web Token Message Elements

A JWT message consists of HTTP headers and an HTTP message body.
HTTP Message Elements
Your HTTP message header must include these elements:
HTTP Message Header Elements
HTTP Header Element
Description
content-type
Also known as the Multipurpose Internet Mail Extension (MIME) type, this element identifies the media or file type of the resource (application/json).
host
The transaction endpoint. (
api.visaacceptance.com
)
authorization
JSON Web Signature (JWS) bearer token.
HTTP Message Body
Your API request.

Step 1: Set Known HTTP Headers

Set the values for these HTTP header elements. They do not require calculation.
content-type
Set to the media or file type resource.
host
Set to the endpoint.

Step 2: Set the JWS Header Claims

You must construct a
JSON Web Signature
 (JWS) token. To construct a JWS token, you must first set its header claim values.
These header claim values do not require calculation.
HTTP Message Header Fields
Header Field
Description
alg
The symmetric algorithm you use to sign the token header. These algorithms are supported:
  • HS256
  • HS384
  • HS512
kid
The ID of the key you use to digitally sign the JWT. The key ID must be registered with the authorizing server. It is the key ID from your shared secret key pair. For more information, see Create a Shared Secret Key Pair.
typ
The token type. Set to
JWT
.

Step 3: Set the JWS Body Claims

After you set the JWS header values, set these JWS body claim values:
JWS Body Claims
digest
A Base64-encoded hash of the message payload.
Do not include the
digest
 field if the request message is empty, such as during a GET or DELETE request.
String
digestAlgorithm
The algorithm used to hash the message payload.
The message payload should be hashed using the SHA-256 algorithm.
Do not include the
digestAlgorithm
 field if the
digest
 field is not included.
String
exp
The time at which the JWS token expires. Field values cannot exceed two minutes after the message issue date, which is the
iat
 field value. This field is an HTTP-date value as defined in RFC7231.
For example, 01/01/2020 at 00:02:00 is
1577836920
.
String
iat
The date and time at which the message is issued. This field uses a
NumericDate
 value as defined in RFC 7519, which is the number of seconds since
1970‑01‑01T00:00:00Z
 (Unix epoch).
For example, 01/01/2020 at 00:00:00 is
1577836800
.
String
iss
The issuer identifier for the JWS token. Set to the key ID that created the shared secret key pair. This value is used to validate the issuer.
String
jti
The unique token ID. This value is used for replay prevention.
Format the value using UUID version 4. For example:
6643fb9a-8093-47c6-95d3-8d69785b5e62
String
request-method
The HTTP request method. For example,
post
,
get
,
put
,
patch
, or
delete
.
It is standard practice to use lowercase values.
String
request-resource-path
The complete URL path for the HTTP request.
It is standard practice to use lowercase values.
String
v-c-jwt-version
The Visa JWT scheme version number. Set to
2
.
String
v-c-merchant-id
Your
Visa Acceptance Solutions
 transacting merchant ID (MID).
If you are a portfolio or merchant account user, set this to the transacting merchant ID you send requests on behalf of.
String
v-c-response-mle-kid
The message-level encryption response key ID, also known as the
REST–API Response MLE
 key.
String
The value of the
digest
 JWS claim is a hashed version of the HTTP message body that you must calculate.
Visa Acceptance Solutions
 uses this hash value to validate the integrity of your message body.
Follow these steps to calculate the digest hash:
  1. Generate the SHA-256 hash of the JSON payload (message body).
  2. Encode the hashed string to Base64.
  3. Add the message body hash to the
    digest
     JWS body claims.
  4. Add the algorithm used to hash the digest in the
    digestAlgorithm
     JWS body claims.
Example: Creating a Message Hash Using the Command Line
shasum
 Tool
echo -n "{"clientReferenceInformation":{"code":"TC50171_3"},"paymentInformation":{"card":{"number":
				"4111111111111111","expirationMonth":"12","expirationYear":"2031"}},"orderInformation":{"amountDetails":
				{"totalAmount":"102.21","currency":"USD"},"billTo”:{“firstName":"John","lastName":"Doe","address1":
				"1MarketSt","locality":"sanfrancisco","administrativeArea":"CA","postalCode":"94105","country":"US",
				"email":"
test@vas.com
","phoneNumber":"4158880000"}}}" | shasum -a 256
echo -n "6ae5459bc8a7d6a4b203e8a734d6a616725134088e13261f5bbcefc1424fc956" | base64
Example: Creating a Message Hash Using the Command Line
base64
 Tool
echo -n "6ae5459bc8a7d6a4b203e8a734d6a616725134088e13261f5bbcefc1424fc956" | base64
Example: Creating a Message Hash Using C#
public static string GenerateDigest() {
				var digest = "";
				var bodyText = "{ your JSON payload }";
				using (var sha256hash = SHA256.Create()) {
				byte[] payloadBytes = sha256hash
				.ComputeHash(Encoding.UTF8.GetBytes(bodyText));
				digest = Convert.ToBase64String(payloadBytes);
				digest = "SHA-256=" + digest;
				}
				return digest;
				}
Example: Creating a Message Using Java
public static String GenerateDigest() throws NoSuchAlgorithmException {
				String bodyText = "{ your JSON payload }";
				MessageDigest md = MessageDigest.getInstance("SHA-256");
				md.update(bodyText.getBytes(StandardCharsets.UTF_8));
				byte[] digest = md.digest();
				return "SHA-256=" + Base64.getEncoder().encodeToString(digest);
				}

Step 4: Calculate the JWS Signature

You can now calculate the JSON Web Signature (JWS). The JWS consists of the JWS header and claim set hashes in the following format. They are encrypted with the private key.
[JWS Header].[Claim Set]
Follow these steps to calculate the signature:
  1. Concatenate the JWS header and claim set hash strings with a period character (
    .
    ) between the hashes:
    [JWS Header].[Claim Set]
  2. Generate an encoded version of the text file using your shared secret key from the key pair. For more information, see Create a Shared Secret Key Pair.
  3. Base64-encode the signature output.
  4. After calculating the signature, you can construct a complete JWS token by combining the JWS header claims, body claims, and signature.
Example: Encoding Headers and Body
  printf "%s.%s" \
    "$(echo -n '{"alg":"HS256","typ":"JWT","kid":"1234567890"}' | base64 | tr -d '\n' | tr '+/' '-_' | tr -d '=')" \
    "$(echo -n '{"digest":"Yjg0NGIxOTMxMzQ2NzhlYjdiMDdhMWZmYjZiYzUzNzlkMTk5NzFmNjAzNWRmMThlNzk0N2NhY2U0YTEwNzYyYQ==","digestAlgorithm":"SHA-256","iat":1709845200,"exp":1709845320,"request-method":"post",
  "request-resource-path":"/pts/v2/payments","request-host":"api.cybersource.com","iss":"merchantid","jti":"12345678-1234-1234-1234-123456789012","v-c-jwt-version":"2","v-c-merchant-id":"merchantid"}' |
  base64 | tr -d '\n' | tr '+/' '-_' | tr -d '=')" \
    > signing_input.txt
Code Example: Encoding the Signature File Using OpenSSL
Generate the HMAC signature using the openssl tool and the signing_input.txt generated above. The tr commands convert standard Base64 output to Base64URL encoding as required by JWT specification RFC 7515.
openssl dgst -sha256 -mac HMAC -macopt key:"$(echo 'YOUR_BASE64_ENCODED_SECRET' | base64 -d)" -binary signing_input.txt | base64 | tr -d '\n' | tr '+/' '-_' | tr -d '='

Step 5: Complete the Message with JWTs

Combine all of the HTTP headers with your HTTP message body to construct your HTTP signature message.
If you have not already, you must construct the entire JWS token by combining the JWS header claims, body claims, and signature from Steps 2 – 4.

Enable Message-Level Encryption

IMPORTANT
There are additional tasks you must complete before you can enable message-level encryption. See the Prerequisites for MLE section below.
Message-Level Encryption (MLE) enables you to store information or communicate with other parties while helping to prevent uninvolved parties from understanding the stored information. Enabling MLE requires you to create a
REST-Certificate
 for encrypting your requests and a
REST – API Response MLE
 key for decrypting received responses. If your organization is using a meta key, the portfolio account or merchant account that created the meta key must also create the REST – API Response MLE key.
MLE provides enhanced security for message payload by using an asymmetric encryption technique (public-key cryptography). The message encryption is implemented with symmetric encryption using Advanced Encryption Standard (AES), Galois Counter Mode (GCM) with 256-bit key size. The encryption of keys is supported using RSA Optimal Asymmetric Encryption Padding (OAEP) with 2048-bit key size. The encryption service is based on JSON Web Encryption (JWE), works on top of SSL and requires separate key-pairs for request and response legs of the transaction.
MLE is required for APIs that primarily deal with sensitive transaction data, both financial and non-financial. These are the types of sensitive transaction data:
  • Personal identification information (PII)
  • Personal account number (PAN)
  • Personal account information (PAI)
MLE is supported when using JSON web tokens.
Each of these authentication schemes uses an encrypted payload, called the
JWE
. A JWE token has these five components, with each component separated by a period (.):
  • JOSE header containing four elements:
    "alg": "RSA-OAEP-256", // The algorithm used to encrypt the CEK.
"enc": "A256GCM", // The algorithm used to encrypt the message.
"iat": "1702493653", // The current timestamp in milliseconds.
"kid": "keyId" // The serial number of shared public cert for encryption of CEK.
  • JWE encrypted key
  • JWE initialization vector
  • JWE additional authentication data (AAD)
  • JWE ciphertext and authentication tag

Prerequisites for MLE

Before you can enable message-level encryption (MLE), you must complete these requirements:
  • Verify that the
    Visa Acceptance Solutions
     products you are integrating support MLE.
  • Ensure that your system is configured to read the public key and encrypt the API payload.

Create or Submit a REST—API Response MLE Key

Before you can enable your system to support MLE, you must create or upload a
REST—API response MLE
 certificate. After creating or uploading the certificate, you can extract the certificate's key to begin enabling MLE.
Follow these steps to create or submit an API Response MLE certificate in the
Business Center
:
  2. On the left navigation panel, choose
    Payment Configuration > Key Management
    .
  3. Click
    + Generate key
     on the Key Management page.
  4. Under REST APIs, choose
    REST – API Response MLE
    , and then click
    Generate key
    .
  5. Choose one of these options to download your key:
    • To create a new API response MLE certificate, click
      Download key
       .
    • To upload your own certificate, enter your public PEM-formatted certificate in the text box, and then click
      Download key
       . The
      .pem
       file downloads to your desktop. If prompted by your system, approve the location to which the file downloads.
  6. If you are creating a certificate, the Set a Password window appears. Create a password for the certificate by entering the password into the
    New Password
     and
    Confirm Password
     fields, and then click
    Generate key
    .
    The
    .p12
     file downloads to your desktop. If prompted by your system, approve the location to which the key downloads.
    To create or upload another key, click
    Generate another key
    . To view all of your created keys, go to the Key Management page.
    IMPORTANT
    Securely store the
    .p12
     file and password in your system. These credentials are required in order to implement certain products, and you must be able to access them.
  7. Click
    Cancel
    .
    The Key Management page appears.
  8. Click the
    Key Type
     filter and choose
    REST-API Response MLE
    .
  9. Click the
    Expires At
     filter and choose
    All Dates
    .
  10. Click
    Search
    .
  11. Find the REST–API Response key that you created in the Search Results table and save its key ID.
    The key ID is needed to test and configure your system to use MLE.
Test Your REST–API Response MLE Key
To test your REST–API Response key, see Test Your REST—API Response MLE Key.

Overview of MLE Setup Tasks

Use the information in this section to configure your system with a custom MLE using JWTs.
If you do not want to set up a custom MLE, you can use the REST Client SDK instead. For more information, see the REST Client SDKs in GitHub.

Figure:

Overview of MLE Set-Up Tasks
  1. Import the required programming libraries for your system.
  2. Import these three credentials:
    • Shared secret key pair (REST API key)
    • MLE request certificate (SJC public certificate)
    • MLE response certificate (REST – API Response MLE)
  3. Encrypt the JSON request message using a JSON Web Encryption (JWE) that uses the SJC public certificate.
  4. Create the HTTP body in this format:
    {"encryptedRequest": "
    JWE-with-SJC
    "}
    .
  5. Create the JSON Web Signature (JWS) payload with these JWT payload fields and your signing certificate's private key. For descriptions of these fields, see the Headers table and Message Body Fields table in Construct Messages Using JSON Web Tokens.
    Header Fields
    • alg
    • kid
    • type
    Message Body Fields
    • digestAlgorithm
    • digest
       of the HTTP body
    • exp
    • iat
    • iss
    • jti
    • request-host
    • request-method
    • request-resource-path
    • v-c-jwt-version
    • v-c-merchant-id
    • v-c-response-mle-kid
       from the MLE response certificate.
  6. Sign the JWS with your private key from the shared secret key pair and send it as
    Authorization: Bearer
    .
  7. Receive an encrypted response and decrypt it with the MLE private key. You will receive the response in this format:
    {"encryptedResponse": "
    JWE-with-ResponseMLECertificate
    "}
    The JWE contains a JOSE header containing these four default elements:
    "alg": "RSA-OAEP-256", // The algorithm used to encrypt the CEK.
"enc": "A256GCM", // The algorithm used to encrypt the message.
"iat": "
    1702493653
    ", // The current timestamp in milliseconds.
"kid": "
    keyId
    " // The serial number of the
    v-c-api-response-mle-kid
     from the authentication JWS in step 5.

Java Example: Enabling MLE Using JWTs

This example describes a possible way in which to configure your system to create a custom MLE with JWTs. These steps use the Java programming language.
  1. Import your preferred libraries to support MLE. In this step, the configuration uses Java leveraging the open source Nimbus JOSE and Bouncy Castle libraries.
    // Nimbus JOSE + JWT
import com.nimbusds.jose.JWEAlgorithm;
import com.nimbusds.jose.JWEHeader;
import com.nimbusds.jose.JWEObject;
import com.nimbusds.jose.JWSAlgorithm;
import com.nimbusds.jose.JWSHeader;
import com.nimbusds.jose.JWSObject;
import com.nimbusds.jose.JOSEObjectType;
import com.nimbusds.jose.EncryptionMethod;
import com.nimbusds.jose.Payload;
import com.nimbusds.jose.crypto.RSADecrypter;
import com.nimbusds.jose.crypto.RSAEncrypter;
import com.nimbusds.jose.crypto.MACSigner;

// BouncyCastle (PEM parsing + cert conversion)
import org.bouncycastle.cert.X509CertificateHolder;
import org.bouncycastle.cert.jcajce.JcaX509CertificateConverter;
import org.bouncycastle.openssl.PEMKeyPair;
import org.bouncycastle.openssl.PEMParser;
import org.bouncycastle.openssl.jcajce.JcaPEMKeyConverter;
  2. Import the signing, MLE, and SJC certificates. The P12 certificate as the signing certificate.
    public final class CryptoMaterialHmac {
public final byte[] sharedSecret;
public final String keyId;
public final KeyPairMaterial responseCert;
public final X509Certificate sjcCert;

public final class CryptoMaterialDual {
// Merchant: JWS (REST – Certificate)
public final KeyPairMaterial signingCert;
// Merchant: Response decryption (API Response MLE)
public final KeyPairMaterial responseCert;
// Platform encryption cert (SJC)
public final X509Certificate sjcCert;

public CryptoMaterialHmac(byte[] sharedSecret, String keyId, KeyPairMaterial responseCert, X509Certificate sjcCert) {
this.sharedSecret = sharedSecret;
this.keyId = keyId;
this.responseCert = responseCert;
this.sjcCert = sjcCert;
}
}
  3. Unpack your imported certificates into a usable format for your system.
    Create this method for your system to read your
    .p12
     file, if you are using the P12 certificate.
    static KeyPairMaterial loadKeyPairFromP12(Path p12Path, char[] password, String keyAlias) throws Exception {
KeyStore ks = KeyStore.getInstance("PKCS12");
try (InputStream in = Files.newInputStream(p12Path)) {
ks.load( in , password);
}
KeyStore.PrivateKeyEntry entry = (KeyStore.PrivateKeyEntry) ks.getEntry(
keyAlias, new KeyStore.PasswordProtection(password));
return new KeyPairMaterial(entry.getPrivateKey(), (X509Certificate) entry.getCertificate());
}
    Create this method for your system to read the PEM chain and private key.
    static KeyPairMaterial loadKeyPairFromPem(Path certificateChainPem, String privateKeyPem) throws Exception {
X509Certificate leaf = readPemCerts(certificateChainPem).get(0);
PrivateKey key = readPkcs8PrivateKey(privateKeyPem);
return new KeyPairMaterial(key, leaf);
}
    Create this method for your system to read the SJC from the
    .p12
     file or PEM chain.
    static X509Certificate loadSjcFromP12(Path p12Path, char[] password, String sjcAlias) throws Exception {
KeyStore ks = KeyStore.getInstance("PKCS12");
try (InputStream in = Files.newInputStream(p12Path)) {
ks.load( in , password);
}
return (X509Certificate) ks.getCertificate(sjcAlias);
}

static X509Certificate loadSjcFromPem(Path sjcCertPem) throws Exception {
return readPemCerts(sjcCertPem).get(0);
}
    Create this method to include PEM helper functions.
    static List < X509Certificate > readPemCerts(Path pemPath) throws Exception {
try (Reader r = Files.newBufferedReader(pemPath); org.bouncycastle.openssl.PEMParser p = new org.bouncycastle.openssl.PEMParser(r)) {
var xconv = new org.bouncycastle.cert.jcajce.JcaX509CertificateConverter().setProvider("BC");
List < X509Certificate > certs = new ArrayList < > ();
Object o;
while ((o = p.readObject()) != null) {
if (o instanceof org.bouncycastle.cert.X509CertificateHolder h) certs.add(xconv.getCertificate(h));
}
return certs;
}
}

static PrivateKey readPkcs8PrivateKey(String pem) throws Exception {
try (var parser = new org.bouncycastle.openssl.PEMParser(new StringReader(pem))) {
Object o = parser.readObject();
var conv = new org.bouncycastle.openssl.jcajce.JcaPEMKeyConverter().setProvider("BC");
if (o instanceof org.bouncycastle.asn1.pkcs.PrivateKeyInfo pki) return conv.getPrivateKey(pki);
if (o instanceof org.bouncycastle.openssl.PEMKeyPair kp) return conv.getPrivateKey(kp.getPrivateKeyInfo());
throw new IllegalArgumentException("Expect PKCS#8 private key PEM");
}
}
  4. Create these methods as helpers for encrypting and signing.
    static String kidFromCert(X509Certificate cert) {
String dn = cert.getSubjectDN().getName().toUpperCase();
int i = dn.indexOf("SERIALNUMBER=");
if (i >= 0) {
int j = dn.indexOf(",", i);
if (j < 0) j = dn.length();
return dn.substring(i + "SERIALNUMBER=".length(), j).trim();
}
return cert.getSerialNumber().toString();
}

static String encryptToJwe(String json, X509Certificate sjcCert) throws Exception {
var header = new com.nimbusds.jose.JWEHeader.Builder(
com.nimbusds.jose.JWEAlgorithm.RSA_OAEP,
com.nimbusds.jose.EncryptionMethod.A256GCM)
.contentType("JWT")
.keyID(kidFromCert(sjcCert))
.build();
var jwe = new com.nimbusds.jose.JWEObject(header, new com.nimbusds.jose.Payload(json));
jwe.encrypt(new com.nimbusds.jose.crypto.RSAEncrypter((RSAPublicKey) sjcCert.getPublicKey()));
return jwe.serialize();
}

static String sha256Base64(String body) throws Exception {
MessageDigest md = MessageDigest.getInstance("SHA-256");
return Base64.getEncoder().encodeToString(md.digest(body.getBytes(StandardCharsets.UTF_8)));
}


static String signAsJwsHmac(String payload, byte[] sharedSecret, String keyId) throws Exception {
var headerBuilder = new com.nimbusds.jose.JWSHeader.Builder(com.nimbusds.jose.JWSAlgorithm.HS256)
.type(com.nimbusds.jose.JOSEObjectType.JWT);

// CHANGED: Add optional keyId (not extracted from certificate)
if (keyId != null && !keyId.isEmpty()) {
headerBuilder.keyID(keyId);
}

var header = headerBuilder.build();
var jws = new com.nimbusds.jose.JWSObject(header, new com.nimbusds.jose.Payload(payload));
jws.sign(new com.nimbusds.jose.crypto.MACSigner(sharedSecret));
return jws.serialize();
}

static String decryptJwe(String compactJwe, KeyPairMaterial responseCert) throws Exception {
var jwe = com.nimbusds.jose.JWEObject.parse(compactJwe);
jwe.decrypt(new com.nimbusds.jose.crypto.RSADecrypter((RSAPrivateKey) responseCert.privateKey));
return jwe.getPayload().toString();
}
  5. Create a class that uses the methods described in the above steps to encrypt and decrypt your payloads with MLE using JWTs.
    // - REST – Shared Secret (base64-encoded)
// - API Response MLE from PEM
// - SJC from PEM

// Load and decode your base64-encoded shared secret
String base64Secret = "YOUR_BASE64_ENCODED_SECRET";// Get from your secure configuration
byte[] sharedSecret = java.util.Base64.getDecoder().decode(base64Secret);
String keyId = "1234567890";// Optional: Your Key ID

KeyPairMaterial responseCert = loadKeyPairFromPem(
Paths.get("api_response_mle_chain.pem"), Files.readString(Paths.get("api_response_mle_private_key.pem")));
X509Certificate sjc = loadSjcFromPem(Paths.get("sjc_certificate.pem"));

CryptoMaterialHmac mat = new CryptoMaterialHmac(sharedSecret, keyId, responseCert, sjc);

// 1) Build your request JSON
String requestJson = new org.json.JSONObject()
.put("amount", "10.00")
.put("currency", "USD")
.put("reference", "ORDER-12345")
.toString();

// 2) Encrypt request body to JWE using SJC public cert
String encryptedJwe = encryptToJwe(requestJson, mat.sjcCert);

// 3) Build the HTTP body (this is what you'll hash for the digest)
String httpBody = new org.json.JSONObject()
.put("encryptedRequest", encryptedJwe)
.toString();

// 4) Build JWS payload: include iat, response kid, digestAlgorithm, and digest of httpBody
String digestB64 = sha256Base64(httpBody);
String jwsPayload = new org.json.JSONObject()
.put("iat", java.time.Instant.now().getEpochSecond())
.put("v-c-api-response-mle-kid", kidFromCert(mat.responseCert.cert))// instruct server to encrypt to your API Response MLE key
.put("digestAlgorithm", "SHA-256")
.put("digest", digestB64)
.toString();

// 5) Sign the JWS with the shared secret using HMAC
String signedJws = signAsJwsHmac(jwsPayload, mat.sharedSecret, mat.keyId);

// 6) Send the HTTP request
// POST /your/api
// Content-Type: application/json
// Authorization: Bearer <signedJws>
/*
Body:
{ "encryptedRequest": "<encryptedJwe>" }
*/

// 7) Handle the response (decrypt if needed with API Response MLE private key)
String apiResponse = /* http call result as string */;
org.json.JSONObject resp = new org.json.JSONObject(apiResponse);
String finalPayload = resp.has("encryptedResponse")
? decryptJwe(resp.getString("encryptedResponse"), mat.responseCert)
: apiResponse;

Test Your Setup

You can send a test API request to validate that your account, API key, JWT messages, and MLE security are working as intended.
Visa Acceptance Solutions
Visa Acceptance Platform
 recommends that you test and verify that your payment system can securely send and receive REST API messages before transitioning to a production account.

Postman Testing

You can use Postman to verify your HTTP signature message. To download a Postman collection of basic payment API requests, see the REST API collection on the Postman website.
When testing an API outside of the Developer Center's API Reference sandbox, send your test API requests to the test server:
https://apitest.visaacceptance.com
For example, to test an authorization request, you can send the request to this endpoint:
https://apitest.visaacceptance.com
/pts/v2/payments

Test Your REST–API Response Key

Follow these steps to verify that your API response MLE key is working. If you have not already created or submitted an API response MLE certificate, see the Create or Submit a REST—API Response MLE Key section in Enable Message-Level Encryption.
  1. Go to the REST API Reference page in the
    Visa Acceptance Solutions
     Developer Center:
  2. On the left navigation panel, choose an API that supports MLE. For testing purposes, you can choose
    Intelligent Commerce > Intelligent Commerce Product > Enroll a Card
    .
    MLE support is indicated by
    Request MLE
     and
    Response MLE
     at the top of the screen.
  3. Choose the
    MLE Configuration
     tab.
  4. In the Message Level Encryption Credentials section, enter your API response MLE key credentials:
    • Response encryption:
       Enter the key ID of your API response MLE key.
      You saved this key ID in Step 10 in the Create or Submit an API Response MLE Key section in Enable Message-Level Encryption.
    • Response decryption:
       Click
      Browse
       to submit your own private decryption key from your local system. Only
      .p12
       files are supported.
  5. Click
    Update Credentials
    .
  6. From the
    Send
     drop-down menu, choose
    Send Request with Message Level Encryption
    .
  7. Click
    Send
    .
  8. When a
    Success: HTTP Status Code: 201
     message displays in the Response section, your API response key is properly configured.

Going Live

When you are ready to process payments in a live environment, you must transition your account to the live status with a valid configuration for your chosen payment processor. When your account is live, your transaction data flows through the production
Visa Acceptance Solutions
 gateway, to your processor, and on to the appropriate payment network.
To transition your account:
  1. Sign up for a merchant account.
  2. Contact Sales to establish a contract with
    Visa Acceptance Solutions
     that enables you to process real transactions and receive support.
  3. Submit a merchant ID (MID) activation request.
It can take up to three business days for the MID to become active.

Create a Merchant ID

The merchant ID (MID) identifies you and your transactions, which requires you to include it in each transaction request. When you signed up for a sandbox account, you received a merchant ID for testing purposes. If you choose, you can use that merchant ID as your production ID.
Follow these steps to sign up for a merchant account in order to create a production MID:
  1. Go to the
    Business Center
     Sandbox Account Sign Up page, enter the required information, and click
    Create Account
    .
    Choose your merchant ID name. It cannot be changed. This name is not visible to your customers.
  2. Review your information entered, especially your business email address. Your merchant ID registration information will be sent to the email entered on this form.
  3. Look for an email from customer support titled:
    Visa Acceptance Solutions
     Merchant Evaluation Account
    .
    This email contains your organization ID and contact email associated with your MID.
  4. Look for an email titled:
    Merchant Registration Details
    . Click the
    Set up your username and password now
     link.
    Your browser opens the New User Sign Up wizard.
  5. Enter the organization ID and contact email you supplied previously. Follow the wizard pages to add your name, a username, and password.
  6. Log in to the
    Business Center
    .
    When you log in for the first time, you will be asked to identify yourself through a system-generated email that is sent to your email account.
  7. Look for an email titled:
    Visa Acceptance Solutions
     Identification Code
    . Save the passcode in the email.
  8. Enter the passcode on the Verify your Identity page. You are directed to the
    Business Center
     home page.
You have successfully created a merchant ID and merchant account.

Activate Your Merchant ID

The activation process, also known as
going live
, transitions your MID and account from test status to live status, enabling you to process real transactions in production. It can take up to three business days for the MID to become active.
To transition your account, complete these steps:
  1. Sign in to the
    support center
     as an administrator.
  2. Enter your credentials and log in to your test environment. The organization ID is your MID.
  3. In the
    Business Center
    , go to
    Support Cases > MID Configuration Request
    . The MID Configuration Request page should be open.
  4. Click
    MID Activation
    .
  5. In the
    Description
     field, enter the merchant ID that you want to take live.
  6. Choose a processor configuration, and enter the name of your processor.
    If you are unsure of the processor name, contact your merchant service provider or your merchant acquiring bank.
  7. Choose the environments to which this change applies (test or production).
  8. Click
    Service Enablement
     and list the products and services that you intend to use.
  9. Click
    Submit
    .

Production Endpoints

Send API requests using your production account to the production server:
https://api.visaacceptance.com
For example, send a live authorization request to this endpoint:
https://api.visaacceptance.com
/pts/v2/payments

Set Up an HTTP Signature Message [DEPRECATING]

To set up HTTP signature messaging, you must complete the tasks described in this section.
WARNING
By
September 2026
, all merchants using HTTP signature messaging must migrate to JSON Web Token (JWT) messaging in order to support message-level encryption (MLE). You risk transaction failures if you do not implement this update. If you are setting up your system to be REST-compliant for the first time,
Visa Acceptance Solutions
 recommends using JWT messaging.
To update your system to support JWT messaging, use one of these methods:

Figure:

Set Up HTTP Signature Messaging
  1. Sign up for a test account. See Sign Up for a Sandbox Account.
  2. Create a shared secret key. See Create a Shared Secret Key Pair.
  3. Construct a message using HTTP signature security. See Construct Messages Using HTTP Signature Security.
  4. Go live by transitioning your sandbox account into a production account. Going Live.

Sign Up for a Sandbox Account

To begin setting up your account, you must first sign up for a sandbox account. A sandbox account enables you to obtain your security keys and test your implementation.
IMPORTANT
A sandbox account cannot process live payments and is intended only for testing.
Follow these steps to sign up for a sandbox account:
  1. Go to the
    Visa Acceptance Solutions
     Developer Center sandbox account sign-up page:
  2. Enter your information into the sandbox account form, and click
    Create Account
    .
  3. Go to your email and find a message titled:
    Merchant Registration Details
    . Click
    Set up your username and password now
    .
    Your browser opens the New User Sign Up wizard.
  4. Enter the organization ID and contact email you supplied when you created your account. Follow the wizard pages to add your name, a username, and a password. Your username and password must meet these requirements:
    Username and Password Requirements
    Username Requirements
    Password Requirements
    • Length must be 3-36 characters.
    • Can only contain letters, numbers, periods, dashes, or underscores.
    • Length must be 12–50 characters.
    • Must contain one upper case letter.
    • Must contain one lower case letter.
    • Must contain one number.
    • Cannot contain the username or organization ID.
  5. Log in to the
    Business Center
    .
    When you log in for the first time, you must verify your identity through a system-generated email sent to your email account.
  6. Check your email for a message titled:
    Visa Acceptance Solutions
     Identification Code
    . A passcode is included in the message.
  7. Enter the passcode on the
    Verify your Identity
     page.
    You are directed to the
    Business Center
     home page.
    You have successfully signed up for a sandbox account.
    IMPORTANT
    A sandbox account cannot process live payments. After you verify that your system can send and receive REST messages, you can contact customer service to transition your sandbox account to a production account.

Create a Shared Secret Key Pair

You must create a shared secret key pair to use HTTP signature message security. How you create your shared secret key pair is determined by your
Visa Acceptance Solutions
 account type.
Transacting merchant account users can create their own unique shared secret key. Portfolio and merchant account users must create a
meta key
 of a shared secret key. Meta keys enable an organization administrator to create a single shared secret key. That key is assigned to some or all transacting merchants in their organization. The purpose of a meta key is to reduce the time needed to manage an organization's keys. For example, by assigning the same meta key to all of your transacting merchants, you need to update only one key when it expires instead of having to update each transacting merchant's key when it expires.
For more information about meta keys, see the Meta Key Creation and Management section in the
Creating and Using Security Keys User Guide
.

Figure:

Account Type Overview
Portfolio
A portfolio account represents the partner user. This account type can create and manage merchant accounts in the test and production environments. To create a shared secret meta-key as a portfolio user, see Portfolio User: Create a Meta Key.
Merchant
A merchant account represents the merchant user. This account type can create and manage multiple transacting merchant accounts within their organization. To create a shared secret meta-key as a merchant user, see Merchant Account User: Create a Meta Key.
Transacting Merchant
A transacting merchant represents the merchant user who is processing transactions. This account type is typically the account that sends API requests. To create a shared secret key pair as a transacting merchant, see Creating a Shared Secret Key Pair.

Creating a Shared Secret Key Pair

Follow these steps to create a shared secret key pair:
IMPORTANT
Only transacting merchant account users can complete this task.
  2. On the left navigation panel, choose
    Payment Configuration > Key Management
    .
  3. Click
    + Generate key
     on the Key Management page.
  4. Under REST APIs, choose
    REST – Shared Secret
     and then click
    Generate key
    .
    The REST API Shared Secret Key page appears.
  5. Click
    Download key
     .
    The
    .pem
     file downloads to your desktop.
To create or upload another key, click
Generate another key
. To view all of your created keys, go to the Key Management page.
IMPORTANT
Securely store the key credentials and
.pem
 file in your system. These credentials are required in order to implement certain products, and you must be able to access them.
What to do next
To test your shared secret key pair, see Test Your Shared Secret Key Pair.

Merchant Account User: Create a Meta Key

This section describes how to create a meta key as a merchant account user in the
Business Center
.
IMPORTANT
Only merchant account users can complete this task.
IMPORTANT
If you would like to create meta keys using the API, contact your support team for more information.
Follow these steps to create a meta key for a shared secret key pair:
  1. Log in to the
    Business Center
    :
  2. On the left navigation panel, choose
    Payment Configuration > Key Management
    .
    If you are using a portfolio account to create a meta key for one of your merchant accounts, you can switch to a merchant account by clicking
    Switch merchant
    .
    The Quick Merchant Switch page appears.
    Choose the merchant account ID that you want to switch to, and click
    Switch
    .
  3. In the
    Merchant ID
     search filter, choose your merchant account ID.
    If you logged in from a portfolio user account or the account (
    _acct
    ) level, verify that the merchant ID you choose does not contain
    _acct
     in the ID name.
  4. Click
    + Generate key
    .
    The Create Key page appears.
  5. Choose
    REST – Shared Secret
     and click
    Generate key
    .
    The Key options window appears.
  6. Check the
    Create as a Meta-Key
     box and click
    Continue
    .
  7. Choose one of these options to assign the key:
    • To assign this key to all accounts in the current portfolio, choose
      All current and future Merchant IDs
      , click
      Create key
      , and continue to the Create Key page. All future merchant IDs will be automatically assigned this key. You are done and do not need to proceed with the following steps.
    • To assign this key to a specific merchant or group of merchants, choose
      Custom Merchant ID selection
       and then click
      Create key
      . This key is not automatically assigned to any future merchants. Proceed to the following steps.
  8. Click
    + Add custom merchant ids
    . The Add Custom Merchant IDs page appears.
    By default, all merchant IDs are shown in the Merchant IDs table. To limit the list to a subset of merchant IDs, click
    + Add filter
    , choose a search filter from the drop-down menu, and click
    Search
    .
  9. Check one or more transacting MID account boxes, and click
    Submit
    .
    The Key Generation page opens.
  10. Click
    Create key
    .
    Continue to the Create Key page to view your new key.
    You can also generate a new key by clicking
    + Generate Key
     again.

AFTER COMPLETING THE TASK

To test your shared secret key pair, see Test Your Shared Secret Key Pair.

Portfolio User: Create a Meta Key

This section describes how to create a meta key as a portfolio user in the
Business Center
.
IMPORTANT
Only portfolio account users can complete this task.
IMPORTANT
If you would like to create meta keys using the API, contact your support team for more information.
Follow these steps to create a meta key for a shared secret key pair:
  1. Log in to the
    Business Center
    :
  2. On the left navigation panel, choose
    Payment Configuration > Key Management
    .
  3. In the
    Merchant Id
     field, choose your portfolio ID if it is not already chosen by default.
  4. Click
    + Generate key
    .
    The Create Key page appears.
  5. Choose
    REST – Shared Secret
     and click
    Generate key
    .
    The Key options page appears.
  6. Check the
    Create as a Meta-Key
     box and click
    Continue
    .
  7. Choose one of these options to assign the key:
    • To assign this key to all accounts in the current portfolio, choose
      All current and future Merchant IDs
      , click
      Create key
      , and continue to the Create Key page. All future merchant IDs will be automatically assigned this key. You are done and do not need to proceed with the following steps.
    • To assign this key to a specific merchant or group of merchants, choose
      Custom Merchant ID selection
       and then click
      Create key
      . This key is not automatically assigned to any future merchants. Proceed to the following steps.
  8. Click
    + Add custom merchant ids
    . The Add Custom Merchant IDs page appears.
    By default, all merchant IDs are shown in the Merchant IDs table. To limit the list to a subset of merchant IDs, click
    + Add filter
    , choose a search filter from the drop-down menu, and click
    Search
    .
  9. Check one or more transacting MID account boxes, and click
    Submit
    .
    The Key Generation page opens.
  10. Click
    Create key
    .
    Continue to the Create Key page to view your new key.
    You can also generate a new key by clicking
    + Generate Key
     again.

AFTER COMPLETING THE TASK

To test your shared secret key pair, see Test Your Shared Secret Key Pair.

Test Your Shared Secret Key Pair

After creating your key certificate, you must verify that your key can successfully process API requests. Follow these steps to validate your key certificate in the Developer Center and the
Business Center
.
  2. On the left navigation panel, click .
  3. Under Authentication and Sandbox Credentials, go to the Authentication Type drop-down menu and choose
    HTTP Signature
    .
  4. Enter your organization ID in the
    Organization ID
     field.
  5. Enter your key, also known as your private key, in the
    Key
     field.
  6. Enter your secret key, also known as your public key, in the
    Shared Secret Key
     field.
  7. Click
    Update Credentials
    .
  8. Go to the Developer Center's API Reference and navigate to
    Payments >
    POST
     Process a Payment
    .
  9. Click
    Send
    .
    A message confirms that your request was successful with the status code 201.
  10. Log in to the
    Business Center
    :
  11. On the left navigation panel, choose
    Transaction Management > Transactions
    .
  12. Under Search Results, verify that the request ID from the test authorization response is listed in the Request ID column.
    If the test authorization was successful, a success message is present in the corresponding Applications column.

Construct Messages Using HTTP Signature Security

HTTP signatures use a digital signature to enable the receiver to validate the sender's authenticity and ensure that the message was not tampered with during transit. For more information about HTTP signatures, see the IETF Draft that is maintained by the IETF HTTP Working Group.
Follow these steps to create messages using HTTP signatures:

HTTP Message Elements

An HTTP message is constructed using HTTP headers and an HTTP message body.
HTTP Message Headers
Your message header must include these HTTP header fields:
HTTP Header Fields
HTTP Header Field
Description
content-type
Also known as the Multipurpose Internet Mail Extension (MIME) type, it is the identifier of the media or file type resource. You can set the value to:
application/json
host
The transaction endpoint (
api.visaacceptance.com
).
v-c-date
The date of the transaction in the RFC1123 format. Example:
Thu, 18 Jul 2019 00:18:03 GMT
v-c-merchant-id
Your
Visa Acceptance Solutions
 transacting merchant ID (MID).
If you are a portfolio or merchant account user, set this to the transacting merchant ID you send requests on behalf of.
digest
A hash of the HTTP message body that contains your API request.
The digest field does not apply to
GET
 API requests.
signature
The digital signature, which is constructed using the values of the other headers and secured by your private key.
HTTP Message Body
Your API request.

Step 1: Set Known HTTP Header Values

Set these HTTP header values, which do not require calculation:
content-type
Set to the media or file type resource.
host
Set to the transaction endpoint.
v-c-date
Set to the transaction date in RFC1123 format.
v-c-merchant-id
Set to a transacting merchant ID.

Step 2: Digest Hash Calculation

The value of the
digest
 HTTP header is a hashed version of the HTTP message body that you must calculate. This hash value validates the integrity of your message by the receiver.
Follow these steps to calculate the digest hash:
  1. Generate the SHA-256 hash of the JSON payload (message body).
  2. Encode the hashed string to Base64.
  3. Prepend
    SHA-256=
     to the front of the hash.
  4. Add the message body hash to the
    digest
     HTTP header field.
Creating a Message Hash Using the Command Line
shasum
 Tool
echo -n "{"clientReferenceInformation":{"code":"TC50171_3"},"paymentInformation":{"card":{"number":
				"4111111111111111","expirationMonth":"12","expirationYear":"2031"}},"orderInformation":{"amountDetails":
				{"totalAmount":"102.21","currency":"USD"},"billTo”:{“firstName":"John","lastName":"Doe","address1":
				"1MarketSt","locality":"sanfrancisco","administrativeArea":"CA","postalCode":"94105","country":"US",
				"email":"
test@vas.com
","phoneNumber":"4158880000"}}}" | shasum -a 256
echo -n "6ae5459bc8a7d6a4b203e8a734d6a616725134088e13261f5bbcefc1424fc956" | base64
Creating a Message Hash Using the Command Line
base64
 Tool
echo -n "6ae5459bc8a7d6a4b203e8a734d6a616725134088e13261f5bbcefc1424fc956" | base64
Creating a Message Hash Using C#
public static string GenerateDigest() {
				var digest = "";
				var bodyText = "{ your JSON payload }";
				using (var sha256hash = SHA256.Create()) {
				byte[] payloadBytes = sha256hash
				.ComputeHash(Encoding.UTF8.GetBytes(bodyText));
				digest = Convert.ToBase64String(payloadBytes);
				digest = "SHA-256=" + digest;
				}
				return digest;
				}
Creating a Message Using Java
public static String GenerateDigest() throws NoSuchAlgorithmException {
				String bodyText = "{ your JSON payload }";
				MessageDigest md = MessageDigest.getInstance("SHA-256");
				md.update(bodyText.getBytes(StandardCharsets.UTF_8));
				byte[] digest = md.digest();
				return "SHA-256=" + Base64.getEncoder().encodeToString(digest);
				}

Step 3: Signature Hash Calculation

Before you can construct the
signature
 HTTP header value, you must first generate the
signature hash
. To generate the signature hash value, you must use a Base64-encoded HMAC SHA-256 hash of the signature fields and their values.
This table describes the signature field values that you must use to calculate the signature hash.
Signature Fields
Signature Field
Description
v-c-date
From the header, the date and time in the RFC1123 format.
For example:
Date: Thu, 18 Jul 2023, 22:18:03.
Digest
The Base64-encoded SHA-256 hash of the message body. For more information, see Step 2: Digest Hash Calculation.
Example:
Digest: SHA-256=gXWufV4Zc7VkN9Wkv9jh/JuAVclqDusx3vkyo3uJFWU=
Do not include the digest with GET requests.
Host
From the header, the endpoint host.
For example:
apitest.visaacceptance.com
.
v-c-merchant-id
From the header, the merchant ID associated with the request.
For example:
v-c-merchant-id: mymerchantid
.
request-target
The HTTP method and endpoint resource path.
For example:
request-target: post /pts/v2/payments
.
IMPORTANT
Verify that your request-target values match exactly the resource path. For example,
/pts/v2/payments
 is not the same as
/pts/v2/payments
/
.
Follow these steps to generate the signature hash value:
  1. Generate a byte array of the secret key generated previously. For more information, see Create a Shared Secret Key Pair.
  2. Generate the HMAC SHA-256 key object using the byte array of the secret key.
  3. Concatenate a string of the required information listed above.
    For more information, see Creating the Validation String below.
  4. Generate a byte array of the validation string.
  5. Use the HMAC SHA-256 key object to create the HMAC SHA-256 hash of the validation string byte array.
  6. Base64-encode the HMAC SHA-256 hash.
Signature Hash
signature=”OuKeDxj+Mg2Bh9cBnZ/25IXJs5n+qj93FvPKYpnqtTE=”

Creating the Validation String

To create the validation string, concatenate the required information in the same order as listed in the signature header field parameter. Each item must be on a separate line, and each line should be terminated with a new line character
\n
.
Validation String Example
host:
apitest.visaacceptance.com
\n
date: Thu, 18 Jul 2019 00:18:03 GMT\n
request-target: post /pts/v2/payments/\n
digest: SHA-256=gXWufV4Zc7VkN9Wkv9jh/JuAVclqDusx3vkyo3uJFWU=\n
v-c-merchant-id: mymerchantid
Generating a Signature Hash in C#
private static string GenerateSignatureFromParams(string signatureParams, string secretKey) {
var sigBytes = Encoding.UTF8.GetBytes(signatureParams);
var decodedSecret = Convert.FromBase64String(secretKey);
var hmacSha256 = new HMACSHA256(decodedSecret);
var messageHash = hmacSha256.ComputeHash(sigBytes);
return Convert.ToBase64String(messageHash);
}
Generating a Signature Hash in Java
public static String GenerateSignatureFromParams(String keyString,
String signatureParams) throws InvalidKeyException, NoSuchAlgorithmException {
byte[] decodedKey = Base64.getDecoder().decode(keyString);
SecretKey originalKey = new SecretKeySpec(decodedKey, 0, decodedKey.length, "HmacSHA256");
Mac hmacSha256 = Mac.getInstance("HmacSHA256");
hmacSha256.init(originalKey);
hmacSha256.update(signatureParams.getBytes());
byte[] HmachSha256DigestBytes = hmacSha256.doFinal();
return Base64.getEncoder().encodeToString(HmachSha256DigestBytes);}

Step 4: Constructing the Signature Header

After you generate a signature hash, you can construct the
signature
 HTTP header value.
The
signature
 HTTP header value is constructed using these parameters:
Signature Parameters
Signature Parameter
Description
keyid
The serial number of the signing certificate/key pair. Obtain this in the
Business Center
 Key Management area. For more information, see Creating a Shared Secret Key Pair.
algorithm
The HMAC SHA256 algorithm used to encrypt the signature. It should be formatted:
HmacSHA256
.
headers
The signed-header values calculated in the signature:
  • digest
  • host
  • request-target
  • v-c-date
  • v-c-merchant-id
IMPORTANT
If you are using a meta-key, set the
v-c-merchant-id
 signature-parameter value to the meta-key creator's ID. Then set the
v-c-merchant-id
 HTTP header value to the transacting merchant ID (MID) that you are sending a request on-behalf of.
signature
The signature hash.
Signature Field Format
Signature:"keyid:"[keyid]",algorithm="[encryption algoritm]",headers="field1" "field2" "field3" "etc.", signature="[signature hash]"
Signature Example
Signature:"keyid="123abcki-key1-key2-key3-keyid1234567",
algorithm="HmacSHA256", headers="host date request-target digest v-c-merchant-id",
signature="hrptKYTtn/VfwAdUqkrQ0HT7jqAbagAbFC6nRGXrNzE="

Step 5: Complete Message with HTTP Signature

Combine all of the HTTP header values with your HTTP message body to construct your HTTP signature message.
To test your message, you can send a test request to
Visa Acceptance Solutions
. For more information, see Test Your Setup.

Test Your Setup

You can send a test API request to validate that your account, API key, HTTP headers, and HTTP message body are working as intended.
Visa Acceptance Solutions
Visa Acceptance Platform
 recommends that you test and verify that your payment system can securely send and receive REST API messages before transitioning to a production account.

Postman Testing

You can use Postman to verify your HTTP signature message. To download a Postman collection of basic payment API requests, see the REST API collection on the Postman website.
When testing an API outside of the Developer Center's API Reference sandbox, send your test API requests to the test server:
https://apitest.visaacceptance.com
For example, to test an authorization request, you can send the request to this endpoint:
https://apitest.visaacceptance.com
/pts/v2/payments

Going Live

When you are ready to process payments in a live environment, you must transition your account to the live status with a valid configuration for your chosen payment processor. When your account is live, your transaction data flows through the production
Visa Acceptance Solutions
 gateway, to your processor, and on to the appropriate payment network.
To transition your account:
  1. Sign up for a merchant account.
  2. Contact Sales to establish a contract with
    Visa Acceptance Solutions
     that enables you to process real transactions and receive support.
  3. Submit a merchant ID (MID) activation request.
It can take up to three business days for the MID to become active.

Create a Merchant ID

The merchant ID (MID) identifies you and your transactions, which requires you to include it in each transaction request. When you signed up for a sandbox account, you received a merchant ID for testing purposes. If you choose, you can use that merchant ID as your production ID.
Follow these steps to sign up for a merchant account in order to create a production MID:
  1. Go to the
    Business Center
     Sandbox Account Sign Up page, enter the required information, and click
    Create Account
    .
    Choose your merchant ID name. It cannot be changed. This name is not visible to your customers.
  2. Review your information entered, especially your business email address. Your merchant ID registration information will be sent to the email entered on this form.
  3. Look for an email from customer support titled:
    Visa Acceptance Solutions
     Merchant Evaluation Account
    .
    This email contains your organization ID and contact email associated with your MID.
  4. Look for an email titled:
    Merchant Registration Details
    . Click the
    Set up your username and password now
     link.
    Your browser opens the New User Sign Up wizard.
  5. Enter the organization ID and contact email you supplied previously. Follow the wizard pages to add your name, a username, and password.
  6. Log in to the
    Business Center
    .
    When you log in for the first time, you will be asked to identify yourself through a system-generated email that is sent to your email account.
  7. Look for an email titled:
    Visa Acceptance Solutions
     Identification Code
    . Save the passcode in the email.
  8. Enter the passcode on the Verify your Identity page. You are directed to the
    Business Center
     home page.
You have successfully created a merchant ID and merchant account.

Activate Your Merchant ID

The activation process, also known as
going live
, transitions your MID and account from test status to live status, enabling you to process real transactions in production. It can take up to three business days for the MID to become active.
To transition your account, complete these steps:
  1. Sign in to the
    support center
     as an administrator.
  2. Enter your credentials and log in to your test environment. The organization ID is your MID.
  3. In the
    Business Center
    , go to
    Support Cases > MID Configuration Request
    . The MID Configuration Request page should be open.
  4. Click
    MID Activation
    .
  5. In the
    Description
     field, enter the merchant ID that you want to take live.
  6. Choose a processor configuration, and enter the name of your processor.
    If you are unsure of the processor name, contact your merchant service provider or your merchant acquiring bank.
  7. Choose the environments to which this change applies (test or production).
  8. Click
    Service Enablement
     and list the products and services that you intend to use.
  9. Click
    Submit
    .

Production Endpoints

Send API requests using your production account to the production server:
https://api.visaacceptance.com
For example, send a live authorization request to this endpoint:
https://api.visaacceptance.com
/pts/v2/payments

VISA Platform Connect: Specifications and Conditions for Resellers/Partners

The following are specifications and conditions that apply to a Reseller/Partner enabling its merchants through
Visa Acceptance platform
. Failure to meet any of the specifications and conditions below is subject to the liability provisions and indemnification obligations under Reseller/Partner’s contract with Visa/Cybersource.
  1. Before boarding merchants for payment processing on a VPC acquirer’s connection, Reseller/Partner and the VPC acquirer must have a contract or other legal agreement that permits Reseller/Partner to enable its merchants to process payments with the acquirer through the dedicated VPC connection and/or traditional connection with such VPC acquirer.
  2. Reseller/Partner is responsible for boarding and enabling its merchants in accordance with the terms of the contract or other legal agreement with the relevant VPC acquirer.
  3. Reseller/Partner acknowledges and agrees that all considerations and fees associated with chargebacks, interchange downgrades, settlement issues, funding delays, and other processing related activities are strictly between Reseller and the relevant VPC acquirer.
  4. Reseller/Partner acknowledges and agrees that the relevant VPC acquirer is responsible for payment processing issues, including but not limited to, transaction declines by network/issuer, decline rates, and interchange qualification, as may be agreed to or outlined in the contract or other legal agreement between Reseller/Partner and such VPC acquirer.
DISCLAIMER: NEITHER VISA NOR CYBERSOURCE WILL BE RESPONSIBLE OR LIABLE FOR ANY ERRORS OR OMISSIONS BY THE
Visa Platform Connect
 ACQUIRER IN PROCESSING TRANSACTIONS. NEITHER VISA NOR CYBERSOURCE WILL BE RESPONSIBLE OR LIABLE FOR RESELLER/PARTNER BOARDING MERCHANTS OR ENABLING MERCHANT PROCESSING IN VIOLATION OF THE TERMS AND CONDITIONS IMPOSED BY THE RELEVANT
Visa Platform Connect
 ACQUIRER.
